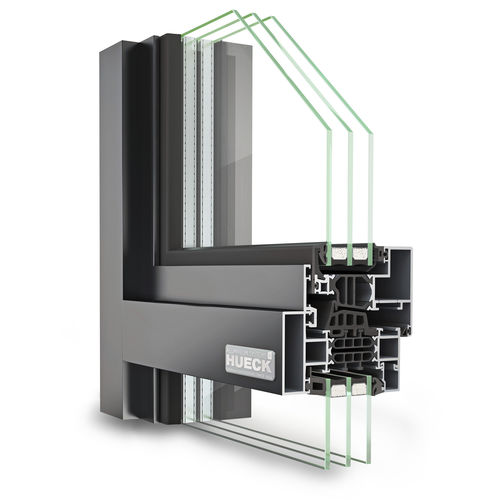

Aluminum window profile LAMBDA WS 075 FC

thermally-insulatedburglar-proofwind-proof

The HUECK Lambda WS 075 FC window façade combines the advantages of a window construction with the appearance of a narrow façade construction. – For example, all cover strips from the HUECK Trigon FS 050 façade series are compatible with this product. Due to the compatibility with the HUECK Lambda WS/DS 075 window and door series, the HUECK Lambda WS 075 FC “inherits” processing advantages, enabling lean inventory management through the use of the common accessories. Product and processing advantages •Window façade made of highly thermally insulated aluminium window construction in a narrow façade design •Profile construction with a basic depth of 75 mm, compatible with HUECK Lambda WS/DS 075 •Opening sash from the HUECK Lambda WS 075 IS or WS 075 window series can be installed •Glass thicknesses of up to 63 mm can be installed •Interior and exterior views can be designed differently Can be combined with all cover strips from the HUECK Trigon FS 050 •Production-efficient thanks to fewer accessories and component sharing •Compatible with the HUECK Lambda DS 075 door series and the HUECK Volato SLS 075 and SLS 075 CS sliding door series. System data •Thermal transmission coefficient (EN 10077-2): Uf ≥ 1.2 W/m²K •Air permeability: class 4 •Water tightness (EN 12208): class 9A •Wind-load resistance: class C4/B4 •Mechanical stress (EN 13115): class 4 •Long-term reliability (EN 12400): class 3 •Burglar resistance (EN 1627 et seq.): up to class RC2
