Insulating interjoist MONOBI

polystyrene

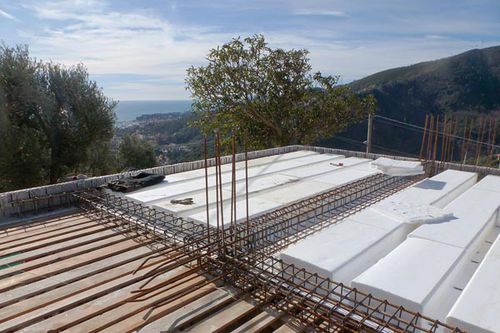

ICF MONOBÌ floor system consists of modular EPS panels (bottom and hollowcore slab) with external interlocking surfaces, suitable for making reinforced concrete floors lightened with one-way or two-way joists. The panels are made up of molded sheets with variable thickness according to structural calculation and transmittance needs. They consist of a lower part (EPS bottom) which is placed on the support formwork and an upper part (EPS hollowcore slab) which is solidly fixed to the first to conform the joists to be cast on site. The convenience of ICF MONOBI floors is also expressed by the presence, on the intrados, of suitable blades embedded in polystyrene, which can be used to fix the plasterboard sheets or to apply suspended loads. The particular shape of these blades, subject of a patent, guarantees the anchoring of the finishing sheets to the reinforced concrete part, even in the event of fire. ICF MONOBI floor is particularly advantageous also in economic terms, since the simplicity that characterizes it turns into a very low cost of execution, compared to the other EPS systems on the market. In addition, the installation, which involves the construction of a “continuous” support deck, is safer for operators against the risk of falling down, in compliance with the requirements introduced by current safety standards on construction sites. Transport is also favored, as the panels can be easily stacked and occupy a very small volume.
