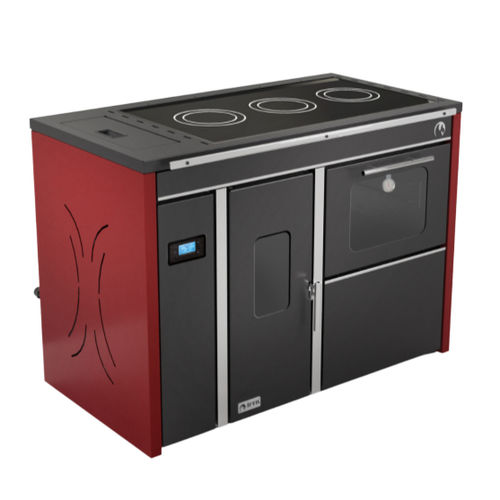

Pellet boiler stove BOSPHORUS PLUS

13 kWmulti-fuelfree-standing

• Modulation combustion • Manuel Cleaing Burning Pot • Digital control panel multi language LCD panel • Auto ignition • Manuel cleaning turbulators • Efficiently burning by powerfull extractors • Chrono (weekly) programing • Back flame safety • Fireplace view • Room thermostad connection • Soft close oven door • 3 floor oven , wide usefully chrome oven • Heat exchanger for hot water (optional) • Built - in design Technical Features Measured Values Boiler Type/ Boiler Model Bosphorus / H. Pellet Cuisine Stove Class ★ ★ ★ ★ ★ Nominal Heat Power kW 13 Minimum Heat Power kW 4 Heat Power to Ambient kW 8 Hourly Fuel Consumption (min.-max.) kg/h 1,6 - 4,9 Efficiency % 91 Fuel Tank Capacity kg 26 Chimney Gas Temperature oC 117 Water Volume of Boiler lt 50 Electricity Consumption W 200 Boiler Weight kg 235 Gross Weight (Packaged) kg 260 Width (W) x Length (D) x Height (H) mm 1175 x 666 x 850 Oven Measure (W x D x H) mm 364 x 495 x 260 Water Inlet - Outlets inch 1 Drain Pipe inch 1/2 Air Flow Inlet Diameter mm Ø 60 Chimney Outlet Diameter mm Ø 100 Max Working Water Pressure bar 3 Designed Pressure bar 3 Test Pressure bar 4,5 Minimum Draught Depressure pa 12 Fuel Type mm Ø 6/L:30 Pellet Electricity Connection Vac/Hz. 230/50 Water Heating Temperature Range oC 60 - 80
