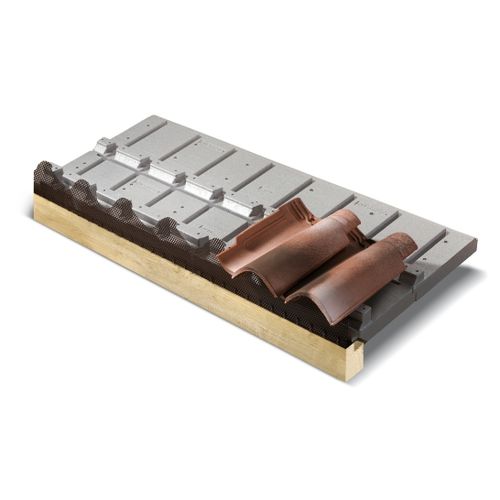

Roof insulating sandwich panel PALLADIO SERIES
wood fiber facing

roof insulating sandwich panel
roof insulating sandwich panel
roof insulating sandwich panel
roof insulating sandwich panel
roof insulating sandwich panel
roof insulating sandwich panel
Add to favorites
Compare this product


Characteristics

Applications
for roof
Facing material
wood fiber facing

Description

The Palladio, modular panels for the installation of tiles, moulded in EPS100 Neopor® (EPS200 Neopor® for raised elements), provides considerable mechanical resistance for raised elements for the attachment of tiles, thanks to the high density with which they have been moulded. The optimum flow of air underneath the mantle dissipates summer heat and favours the dispersion of humidity in winter. The special perimeter fittings prevent the infiltration of water and eliminate thermal bridges. A specific panel for the gutter line, with a shorter spacing and with higher raised elements, keeps the first tile in line with the edge, without having to resort to additional raising elements. The Palladio Scudo for bent tiles, modular panels for the installation of bent tiles, moulded in EPS150, has perimeter joints and interlocking molded surface for anchoring, aeration and and thermal insulation cover floors. In the version for bent tiles is integrated with the insertion of hooks Tritop for the the cover bent tiles. Quick to lay, is among the best solutions in the quality / price ratio. The Palladio Scudo for roof tiles, modular panels for the installation of bent tiles, moulded in EPS150, has perimeter joints and interlocking molded surface for anchoring, aeration and and thermal insulation cover floors. In the version for bent tiles is integrated with the insertion of hooks Tritop for the the cover bent tiles. Quick to lay, is among the best solutions in the quality / price ratio.
