Structural glass panel 2222

safetytemperedlaminated

Summary

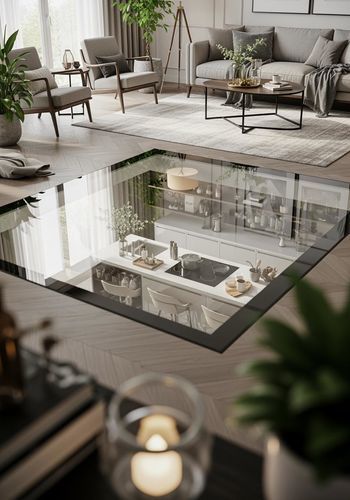

Rectangular custom glass floor integrated into a contemporary living area. Manufactured in tempered and laminated glass to ensure safety and aesthetics, this floor enhances light transmission and offers an elegant view to the lower level.

Description
Infiniglass supplies custom glass floor panels and stair treads designed to project specifications. The product is intended for designer interiors seeking an architectural solution that maximizes transparency and daylight distribution.

Composition and options

• Combination of tempered and laminated glass to ensure safety and structural performance.
• Each floor panel contains a minimum of 3 glass plies and 2 PVB interlayers.
• Anti-slip finishes for treads or panels available (various patterns on request).
• Fully customizable dimensions and edge details to match the planned structure.

Project procedure & compliance
In accordance with the CSTB 3448 guidelines, a detailed project questionnaire must be completed to validate feasibility and determine the required glass composition based on site conditions, expected foot traffic, geometry and supporting structure. This questionnaire establishes a configuration that meets safety standards and CSTB requirements.

Applications
Used as floor panels, stair treads, mezzanines or floors with integrated glass balustrades to maximize natural light and create contemporary visual transitions.

Characteristics / technical specifications

• Product type: rectangular custom glass floor/panel
• Glass: tempered and laminated combination
• Minimum composition: 3 glass plies + 2 PVB interlayers
• Options: anti-slip finish / adhesion patterns available
• Compliance: conforms to CSTB 3448 prescriptions (configuration validated via project questionnaire)
• Intended use: interior use, pedestrian zones with circulation defined during questionnaire
