Structural glass panel

laminatedtemperedtransparent

Overview

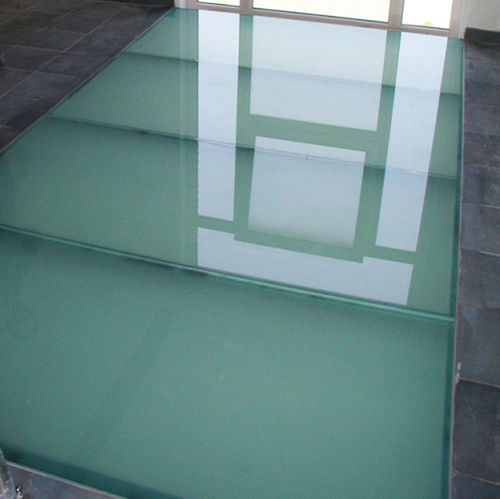

Tempered and laminated glass floor slab manufactured to measure, ideal for creating transparency and allowing natural light to pass between levels. This type of structural glass provides safety, refined appearance and contemporary integration in residential or architectural projects.

Services and process
Infiniglass supplies glass floor slabs and stair treads. Supply is made to measure: a questionnaire must be completed to advise the glass composition in compliance with safety standards and CSTB rules depending on installation conditions (location, expected traffic, shape, framing).

Options and finishes

• Anti-slip treads or slabs available (different patterns on request).
• Different glass compositions adapted according to intended use and applicable standards.

Compliance
In accordance with CSTB technical specification 3448, project feasibility is confirmed via the questionnaire and is used to calculate the appropriate glass composition for the configuration of the floor slab or glass stair tread.

Characteristics / technical specifications

• Type of glass: tempered and laminated glass (structural glass).
• Minimum composition of a slab: at least 3 glass layers and 2 PVB interlayer films.
• Use: custom-made floor slabs and stair treads for interior applications, allowing natural light transmission between floors.
• Anti-slip options available with several pattern choices.
• Dimensioning and composition calculated according to project configuration and applicable CSTB standards.
