Tempered glass panel 369

wiredlaminatedpatterned

Description

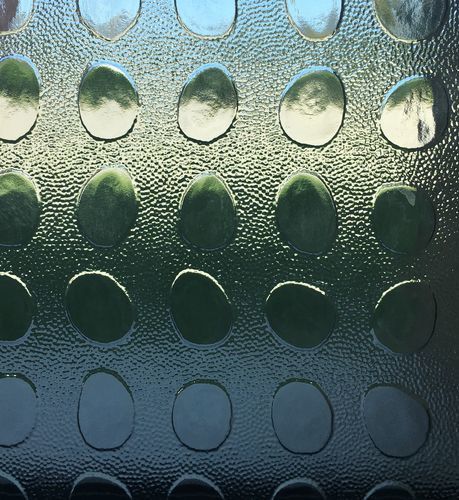

Patterned glass with at least one embossed/engraved face. Patterned (pressed) cast glass can be tempered, laminated or wired depending on the intended application (partitions, doors, façades, decorative glazing). Infiniglass supplies the full range of industrial cast patterned glass from stock or on order.

Applications

• Internal partitions and doors
• Façade glazing and window systems
• Shower screens and sanitary partitions
• Fit-outs and technical decorative elements

Our references

• Listral 130 (imprimé 130) - thickness 5 mm
• Kralika (imprimé 77)
• Imprimé 200 (listral 200, crepi) - thickness 4 to 10 mm
• Imprimé 21 (diamond 21) - thickness 4 mm
• Wired small mesh - thickness 6 mm
• Wired large mesh - thickness 6 mm
• Hammered or cathedral - thickness 4 mm
• Imprimé 9 (water droplet) - thickness 4 mm

Features / technical specifications

• Engraved/embossed face: at least one face
• Product type: patterned/printed glass / industrial cast glass
• Treatment options: tempered, laminated, wired
• Available thicknesses: 4 mm, 5 mm, 6 mm, up to 10 mm depending on reference
• Surface variants: listral, crepi, diamond, water droplet, hammered/cathedral, wired (small and large mesh)
• Availability: stock or made-to-order
