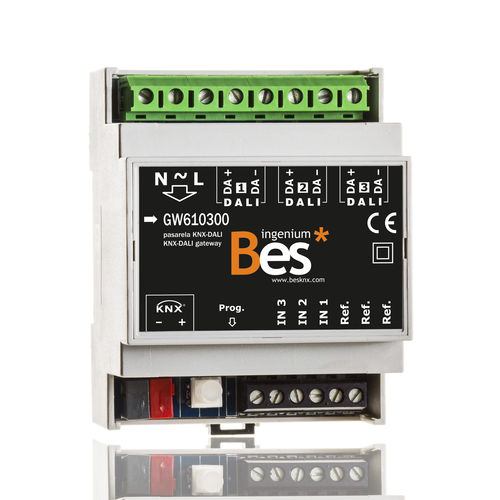

Push-button interface module DALIK-BRD3gatewayDIN railKNX
Add to favorites
Compare this product
Characteristics
- Type
- gateway, push-button
- Other characteristics
- KNX, DIN rail
Description
Gateway for controlling DALI protocol lighting through KNX. It allows to control 3 channels and up to 64 ballasts by broadcast orders, being possible to split number of ballast per channel as interested. Ability to configure up to 16 scenes. 3 inputs available for conventional push-button control. Possibility of use it as an autónomous device.
Supply: 230V AC
Max. Power Consumption: 3.2VA @ 230V AC
KNX supply: 29V DC from BUS KNX
Consumption: 5mA
DIN rail mounted (4 modules)
