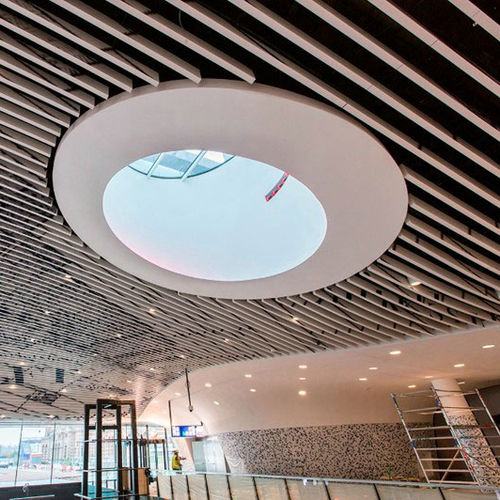

Aluminum acoustic baffle

galvanized steelhangingrectangular

Material - - Galvanized steel or aluminum (extrusion) Thickness - - 0,4 mm. up to 2,8 mm. Width - - 18 to 100 mm. Length - - max. 6.000 mm Hoogte - - 30 to 600 mm. Color - - RAL9003 (standard white) and RAL9006 - if desired, production is possible in all other RAL colors and NCS colors. - if desired, special anti-bacterial paint is possible for places where hygiene is important. - if desired, panels with a wood motif can be produced. - For more information see colors. Perforation - - unperforated or Ø1.5 and Ø2,5 mm. Acoustics - - NRC: 0.60 to 0.90 Inlay - - Polyester fiber mat fire class - - Fire reaction group A2-s1.d0. Technical standards - - Ceiling panels are supported by the clip-in system, which are produced according to the European, American and TAIM (Technical Association of Industrial Metal Ceiling Manufacturers) standards produced in our factory according to ISO 9001.2008, TSE certificates Panels are tested according to the EN 13501-1 standard.
