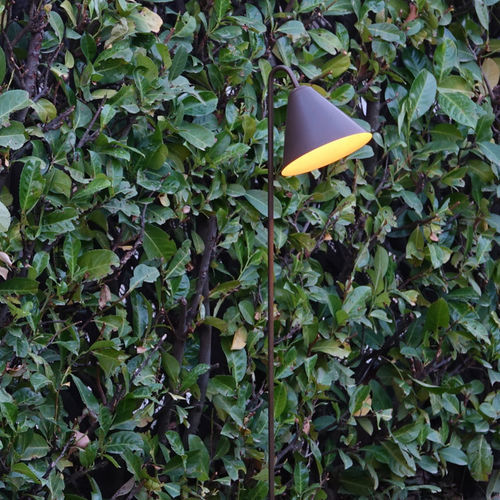

Garden bollard light CARNOUSTIE MAXI

urbancontemporarystainless steel

Product
Carnoustie maxi — outdoor bollard light for architectural and landscape lighting. Slim stainless-steel post with frosted diffuser, available in three heights and multiple finishes.

Applications

• Pathways, gardens and public spaces; façades and waterfront promenades

Technical details
INSTALLATION: into the ground with the supplied spike (+ZA006) or with housing (+ZA005)
POWER: 5 W
SUPPLY: 24 V
FLOW: 500 lm
LED COLOR: 2200K, 2700K, 3000K
MATERIAL: stainless steel AISI 316L
DRIVER: not included
CABLES: wired with 3 mt
DIFFUSER: frosted
OPTIONAL ACCESSORIES: drivers 24 V
COLORS: inox, browntech, naturalblack
DIMENSIONS: 600, 900, 1200 H mm

Colors

• inox
• browntech
• naturalblack

Dimensions
600 mm H, 900 mm H, 1200 mm H

Certifications / Ratings

• class 3
• CE
• IP 65
• IK 08

Technical specifications

• Installation: into the ground with the supplied spike (+ZA006) or with housing (+ZA005)
• Power: 5 W
• Supply: 24 V
• Flow (luminous flux): 500 lm
• LED color temperatures: 2200K, 2700K, 3000K
• Material: stainless steel AISI 316L
• Driver: not included (optional 24 V drivers)
• Cables: wired with 3 m
• Diffuser: frosted
• Available colors: inox, browntech, naturalblack
• Dimensions (height): 600 mm, 900 mm, 1200 mm
• Ingress protection: IP65
• Impact resistance: IK08
