Public space bollard light CARMEN

contemporarypolycarbonatestainless steel

Product overview

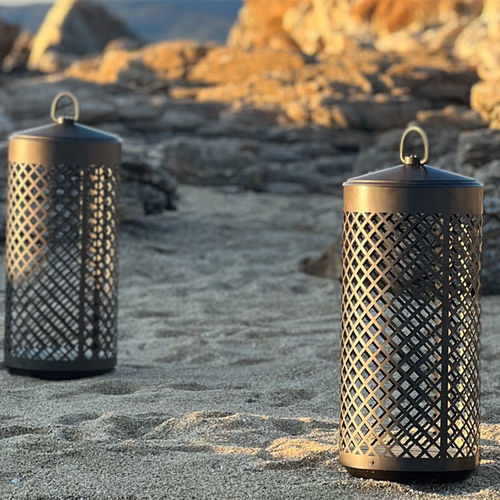

Carmen is an outdoor LED bollard available in fixed and mobile versions, designed for ground installation and low-consumption pathway or perimeter lighting. It delivers 400 lm with selectable warm color temperatures and compact dimensions tailored for urban and architectural applications.

Materials and finishes
Body in stainless steel AISI 316L. Diffuser in opal polycarbonate. Available finishes: inox, browntech, naturalblack.

Technical specifications

• Installation: fixing with screws and anchors (fixed) or placed on the ground (mobile)
• Power: 4 W
• Supply voltage: 220–240 V
• Luminous flux: 400 lm
• LED color temperatures: 2200 K, 2700 K, 3000 K
• Material: stainless steel AISI 316L
• Driver: internal, included
• Cabling: 0.5 m wired (fixed); 5 m H05RNF (mobile)
• Diffuser: opal polycarbonate
• Optional accessories: wall-fixing kit, IP68 connector
• Available colors: inox, browntech, naturalblack

Dimensions & variants
Two heights: 250×500 H mm and 250×700 H mm. Available in R1 and R2 product families with configurations: fixed, mobile and rechargeable variants. Driver integrated in the fixture.

Documentation & resources
PDF catalogue page; technical data sheets for R1 (fixed, mobile, rechargeable) and R2 (fixed, mobile, rechargeable); product JPG photos available.
