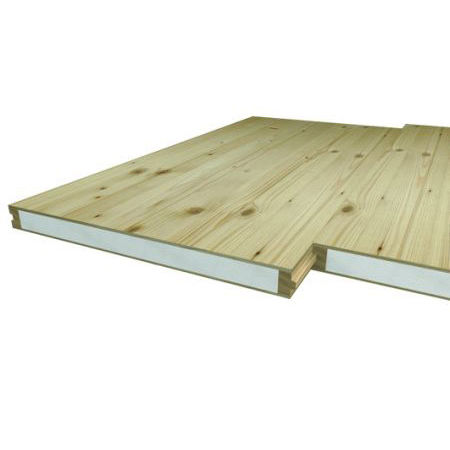

The ISOSANDWICH®-TOP system is a self bearing structural panel which is used to create roofs, flooring and prefabricated walls with the bottom part, heat insulated and ready for subsequent works, on display. Self-bearing panel with sandwich structure ISOSANDWICH®-TOP, proves to be a valid and versatile solution for wood or metal structures even where the centre to centre distance exceeds 2 ml. Made up of an OSB panel and 9 mm smooth or stave plywood panels, a three-layer fir panel with thickness of 14 mm, a single-layer fir panel with thickness of 10 mm, plasterboard sheet (standard, waterproof or fireproof) or 12 mm plaster fibre or OSB, with a panel made from insulating material in between and the insertion of solid wood rails using M/F joints across the long sides.
ISOSANDWICH-TOP EPS dimensions 2440x1220 mm = 2.928 m2 rabbeted on long sides.
ISOSANDWICH-TOP 5000 EPS dimensions 5000x585 mm = 2.925 m2 rabbeted on long sides.
ISOSANDWICH-TOP GRAFITE dimensions 2440x1220 mm = 2.928 m2 rabbeted on short sides.
ISOSANDWICH-TOP 5000 GRAFITE dimensions 5000x585 mm = 2.925 m2 rabbeted on long sides.
ISOSANDWICH-TOP EST dimensions 2440x1220 mm = 2.928 m2 rabbeted on long sides.
ISOSANDWICH-TOP LANA DI ROCCIA dimensions 2440x1220 mm = 2.928 m2 rabbeted on long sides.
ISOSANDWICH-TOP LANA DI ROCCIA dimensions 5000x585 mm = 2.925 m2 rabbeted on long sides.
ADVANTAGES
- multifunctional solution for roofs and sloping roofs - thermal insulation - energy saving
- no thermal bridges - treadable and safe support - in roofs with the laying of a transpiring film
- complete protection against accidental infiltration of the roof mantle is achieved
- significant installation cost savings
