Streamlined heat

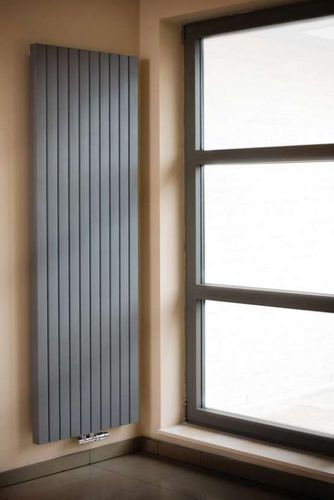

Streamlined, elegant design
The compact nature of the Panel Plus is the answer to the creative ideas of the designer combined with great space saving possibilities at the same time.
The robust design of the Panel Plus radiator with its hidden collectors in the rear creates soberness and quality.
Option
Mikado - Universal towel rail
A universal towel holder with unlimited possibilities. Attached to bathroom or kitchen furniture or simply on the wall.
Material
Composed of steel radiation tubes and 2 collectors at the back side. The radiation tubes are attached to the collector by means of “resistance welding”. No weld seam is visible on the radiation tubes or collectors.
Pressure test: 6 bars
Working pressure: 4.6 bars
Composition
The oval radiation tubes (60 x10.4 x 1.5 mm) are positioned vertical and perpendicular on the horizontal collector (37 x 35 x 2 mm) at the backside, with a spacing of 3 mm and are provided with convection fins. All wall fixing hooks are welded to the radiator and are hooked in the 4 supplied wall brackets.
Transparency: none.
Colour
- Panel Plus Vertical radiators are lacquered in the colour traffic white RAL 9016 (333), smooth satin finish / the colour sandblast grey (001) fine texture metallic / the colour … (see colour chart).
- The radiators are sandblasted, degreased and phosphated. The coating is a scratch resistant epoxy-polyester powder, sprayed electrostatically and baked at a temperature of 200°C. UV-resistant due to ASTM G53. This high quality finish offers an optimal scratch resistance and is very easy to maintain. Thickness of the lacquer: min 80 μ.
