Warm power, simple style

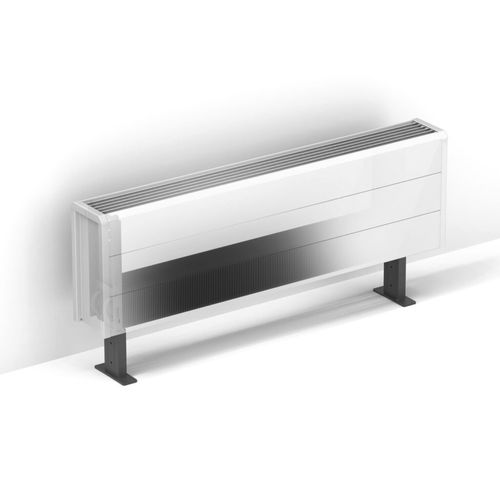

The Jaga classic for rooms with glazed façades. Efficient, freestanding Low-H2O technology.
No heat radiation towards the underlying glass, so no heat loss
Low-H2O technology with super conductive and ultra fast heat exchanger for low energy consumption and maximum heat emission
Safe and low contact temperature
Options
Feet in the same colour as the casing
For feet in the same colour as the casing, repeat the colour code after the code of the radiator.
ex.: TEMF. HHH LLL TT.101/101
Extended adjustable feet
For extended feet in neutral grey, add /AL to the ordering code
ex.: TEMF. 020 040 10.101/AL
For extended feet in the same colour as the casing, add /AL to the ordering code and repeat the colour code.
{webmyne [3] [101517]: TEMF. 020 040 10.101/AL/101
Material
- Low-H2O heat exchanger is composed of round, seamless circulation tubes made of pure red copper, with pure aluminium fins and two brass collectors for left or right 1/2” same end
connection. Air vent elbow (standard) or automatic air vent (twin) 1/8” and drain plug 1/2” are included.
Pressure test: 20 bar
Working pressure: 10 bar
- Brackets are included and made of sendzimir galvanised steel plate of 1 mm; supplied to be installed with a maximum intermediate distance of 1.05 m.
- The front panels: electrolytic, galvanised steel plates of 0.86 mm thick, double profiled in length.
Supplied with small positioning holes and slots to assemble front panels to side panel with easy click system.
- Side panels: sendzimir, profiled galvanised steel plate of 1 mm thick
