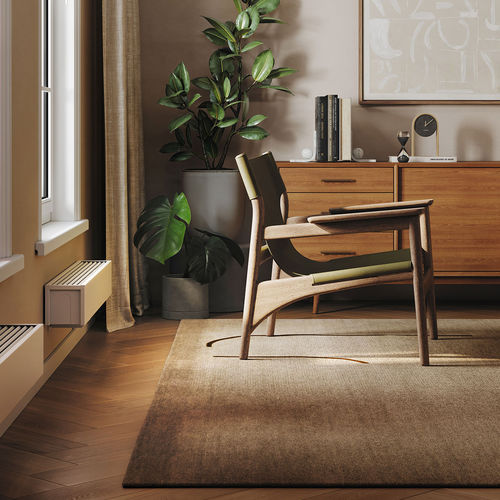

Hot water radiator MINI

751 w...1000 w1001 w...1500 w501 w...750 w

Strikingly inconspicuous Extremely suited to spaces with large windows and for dwarf walls under window seats. Heights from 8cm! Beautiful in combination with the free-standing Mini for glazed façades Low-H2O technology with super conductive and ultra fast heat exchanger for low energy consumption and maximum heat emission Safe and low contact temperature Option Mikado - Universal towel rail A universal towel holder with unlimited possibilities. Attached to bathroom or kitchen furniture or simply on the wall. DELIVERY Easy to install by one person. Standard delivery : - Low-H2O heat exchanger, air vent 1/8” and drain plug 1/2” - casing in one piece for connection left or right - wall brackets in the same colour as the casing COLOURS Environmentally friendly, scratch-resistant, high UV resistant powder coating. Standard colours : - traffic white RAL 9016 (133), soft touch lightly structured satin lacquer - sandblast grey (001), fine texture metallic lacquer CONNECTION Standard connection : Height 008: opposite end connection, flow left or right Other heights: same end connection, left or right connection . 20 70 It is not possible to connect to the wall from inside the casing, as the casing includes a closed rear panel. CONNECTION SETS Mini height013/023/028 Connection to the fl oor : use set 104 Connection to the wall : Jaga H-valve for one or two pipe TRV head and sleeve couplings Eurocone 3/4” included.
