Hot water convector MINI CANAL PRO

contemporarygalvanised steelstainless steel

Overview

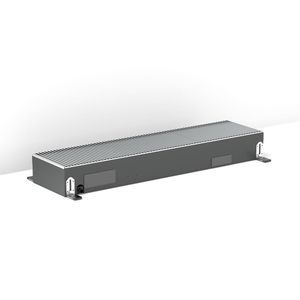

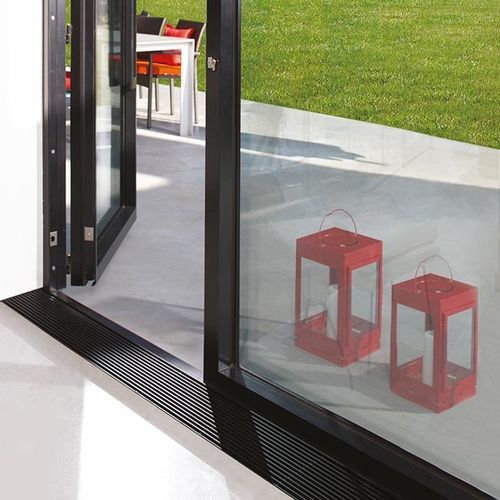

The Mini Canal Pro by Jaga is a flush-mounted trench convector designed for installation along large windows, glazed façades, display windows, conservatories, under window seats and dwarf walls. It uses Low-H2O technology with a super-conductive, fast heat exchanger to reduce water volume and provide high heat emission for linear installations.

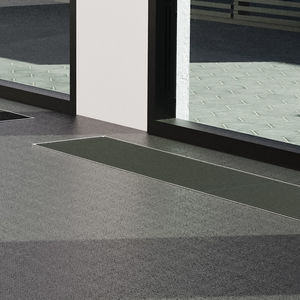

Applications

• Installation along glazed façades and large window areas
• Shop windows and display areas
• Conservatories and sunrooms
• Under window seating and dwarf walls where recessed heating is required
• Continuous linear installation runs

Key features

• Low-H2O technology with super-conductive, ultra-fast heat exchanger
• Multiple grille options in anodised aluminium or wood to match interiors
• Height adjustment 0–4.5 cm standard (with acoustic decoupling); 4.5–10 cm optional
• Stainless steel grille support with electrolytic galvanized steel duct, RAL 7024 finish
• Pre-perforated connection system with synthetic seals and standard air vents/drain plugs
• Designed for discreet, continuous installations
• 30 years warranty

Standard delivery

• Low-H2O heat exchanger
• Duct with stainless steel grille support
• Air vent(s) 1/8" and drain plug(s) 1/2"
• Metal cover plate to protect connections
• Selected grille
• Height adjustment 0–4.5 cm with acoustic decoupling (standard); 4.5–10 cm on request
• Components arranged for continuous installation

Composition

• Grille(s): anodised aluminium or wood (see Jaga colour chart)
• Cover plate: protects the unit during construction
• Low-H2O heat exchanger adapted per Mini Canal Pro type
• Duct: electrolytic galvanized steel plate, dark grey lacquered (RAL 7024)
• Stainless steel grille support
• End cap and pre-perforated system for connections with synthetic seals

Available grilles (selection)

• BNA, BNC, DBV, DBN, DMV, DMN, DOV, DON
• RBV, RBN, RMV, RMN, ROV, RON
• RBR, RDB, RBL, RNA, DNC, DDB
• DBR, DBL, DNA, SNC, SDB, SBR, SBL, SNA

Performance — sample outputs (initial entries)
Header: Height [cm] | Length [cm] | Width [cm] | 75/65/20 [Watts] | 55/45/20 [Watts] | 45/35/20 [Watts] | 35/30/20 [Watts] | Ordering code
9 | 080 | 14 | 105 | 48 | 26 | 13 | MIPR 009 080 14 XXX
9 | 090 | 14 | 126 | 58 | 31 | 16 | MIPR 009 090 14 XXX
9 | 100 | 14 | 147 | 68 | 36 | 18 | MIPR 009 100 14 XXX
9 | 110 | 14 | 168 | 77 | 41 | 21 | MIPR 009 110 14 XXX
9 | 130 | 14 | 210 | 97 | 52 | 26 | MIPR 009 130 14 XXX

Notes
The product is available in many length/width/height combinations with corresponding heating outputs. The sample lines above are initial entries shown on the product page and refer to standard temperature conditions.

Technical specifications

• Low-H2O technology: fast, super-conductive heat exchanger for reduced water volume and improved response
• Heat exchanger variants adapted per Mini Canal Pro type
• Connection fittings: air vents 1/8" and drain plugs 1/2"
• Pre-perforated connection system with synthetic seals
• Height adjustment 0–4.5 cm standard (with acoustic decoupling); 4.5–10 cm optional
• Duct: electrolytic galvanized steel plate, dark grey lacquered RAL 7024; stainless steel grille support
• Cover plate and end cap supplied to protect the unit during installation
• Wide choice of grilles (aluminium and wood) to match interiors
• Suitable for continuous installation runs
• 30 years warranty
