Hot water convector CLIMA CANAL 13 B27

contemporaryaluminumgalvanised steel

Product overview

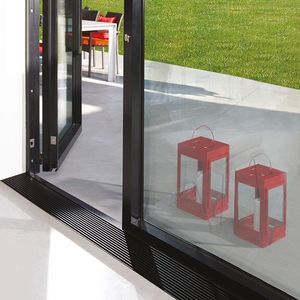

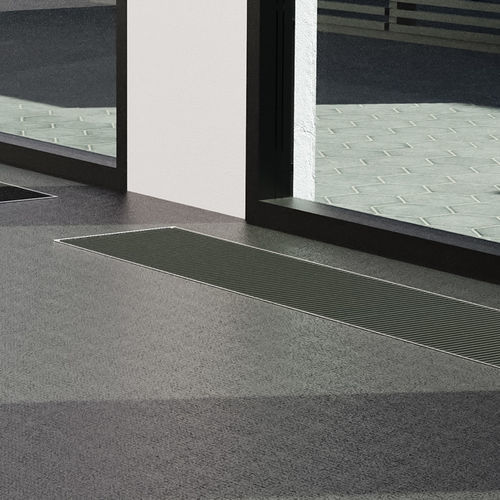

• Compact floor-integrated convector designed for concealed installation in finished floors.
• Silent and unobtrusive, available for heating, light cooling (non-condensing) and deep cooling (total and sensible).
• Shallow installation depth for easy integration in renovation and new-build projects.

Features

• 4-pipe floor convector integrated into the floor (model designation: Clima Canal 13 B27).
• Casing in Sendzimir-galvanised steel sheet (coated, standard finish RAL 7024) with height-adjustable base and stainless-steel grille support.
• Grille options: anodised aluminium or wooden grilles in a variety of finishes and profiles.
• Dynamic 4-pipe heat exchanger (hydronic).
• Thermal activator(s): tangential mini activator(s), 24 VDC.
• Stainless-steel flexible connections 1/2", 15 cm long (standard) to enable continuous installation.
• Height-adjustable base 0 – 4.5 cm; fine adjustment up to +0.8 cm for alignment with finished floor (fine adjustment not included with Clima Canal 019).
• Cover plates and protection panel for site mounting included in standard delivery.
• Hydronic & electrical connection standard on left-hand side (configurable).
• Optional condensate tray for drainage (ø 2 cm) for cooling versions; various accessories available (nozzles, fans, JDPC, DIN-rail PSU, thermostats, connection kits).

Output
Header: Height [cm] ; Length [cm] ; Width [cm] ; Control voltage [V] ; HEATING 75/65/20 [W] ; HEATING 55/45/20 [W] ; HEATING 45/35/20 [W] ; HEATING 35/30/20 [W] ; LIGHT COOLING 16/18/27 (50% R.V.) [W] ; DEEP COOLING Total 7/12/27 [W] ; DEEP COOLING Sensible 7/12/27 [W] ; Sound pressure dB(A) ; Electric power consumption [W] ; Air flow [m3/h]
Rows:
13 ; 80 ; 27 ; 2 ; 362 ; 216 ; 142 ; 90 ; 41 ; 111 ; 78 ; 16 ; 1 ; 38
13 ; 80 ; 27 ; 4 ; 590 ; 352 ; 232 ; 146 ; 84 ; 209 ; 150 ; 19 ; 1.6 ; 55
13 ; 80 ; 27 ; 6 ; 786 ; 469 ; 309 ; 195 ; 127 ; 297 ; 215 ; 27.1 ; 2.9 ; 85
13 ; 80 ; 27 ; 8 ; 962 ; 574 ; 378 ; 238 ; 170 ; 393 ; 288 ; 35 ; 5 ; 117
13 ; 80 ; 27 ; 10 ; 1126 ; 672 ; 442 ; 279 ; 214 ; 498 ; 369 ; 27.1 ; 2.9 ; 85
13 ; 80 ; 27 ; 2 ; 622 ; 371 ; 244 ; 154 ; 71 ; 191 ; 138 ; 19 ; 1 ; 52
13 ; 80 ; 27 ; 4 ; 1015 ; 605 ; 399 ; 251 ; 144 ; 359 ; 257 ; 23.9 ; 1.8 ; 90
13 ; 80 ; 27 ; 6 ; 1351 ; 806 ; 531 ; 334 ; 218 ; 510 ; 370 ; 31.2 ; 3.5 ; 133
13 ; 80 ; 27 ; 8 ; 1779 ; 1061 ; 699 ; 440 ; 253 ; 630 ; 451 ; 25.1 ; 3.5 ; 133
13 ; 80 ; 27 ; 10 ; 2229 ; 1329 ; 876 ; 552 ; 317 ; 790 ; 565 ; 26.9 ; 30.1 ; 2
13 ; 80 ; 27 ; 2 ; 1367 ; 815 ; 537 ; 338 ; 156 ; 420 ; 297 ; 20.8 ; 2 ; 90
13 ; 110 ; 27 ; 2 ; 622 ; 371 ; 244 ; 154 ; 71 ; 191 ; 138 ; 19 ; 1 ; 52
13 ; 110 ; 27 ; 4 ; 1015 ; 605 ; 399 ; 251 ; 144 ; 359 ; 257 ; 23.9 ; 1.8 ; 90
13 ; 110 ; 27 ; 6 ; 1351 ; 806 ; 531 ; 334 ; 218 ; 510 ; 370 ; 31.2 ; 3.5 ; 133
13 ; 110 ; 27 ; 8 ; 1779 ; 1061 ; 699 ; 440 ; 253 ; 630 ; 451 ; 32 ; 40 ; 7.2
13 ; 110 ; 27 ; 10 ; 2229 ; 1329 ; 876 ; 552 ; 317 ; 790 ; 565 ; 39 ; 47 ; 13
13 ; 160 ; 27 ; 2 ; 1091 ; 651 ; 429 ; 270 ; 125 ; 337 ; 238 ; 20.8 ; 2 ; 90
13 ; 160 ; 27 ; 4 ; 1779 ; 1061 ; 699 ; 440 ; 253 ; 630 ; 451 ; 25.1 ; 3.5 ; 133
13 ; 160 ; 27 ; 6 ; 2367 ; 1412 ; 930 ; 586 ; 317 ; 879 ; 650 ; 31.2 ; 6.5 ; 208
13 ; 160 ; 27 ; 8 ; 2967 ; 1770 ; 1166 ; 734 ; 480 ; 1124 ; 814 ; 39.1 ; 9.8 ; 285


Standard delivery / Composition (high-level)

• Casing in Sendzimir-galvanised steel plate (coated, RAL 7024) with height adjustment and stainless-steel grille support.
• Dynamic 4-pipe heat exchanger and tangential mini activator(s) 24 VDC.
• Stainless-steel flexible connections 1/2", 15 cm; valves cover plate; electrical connection inside the casing.
• Height-adjustable base 0 – 4.5 cm with acoustic decoupling for certain versions; fine adjustment up to +0.8 cm included (except Clima Canal 019).
• Protection panel for mounting, cover plates; optional nozzle(s) for ventilation duct; condensate tray (ø 2 cm) where required; fans where applicable.

Technical specifications

• Model: Clima Canal 13 B27.
• Type: Floor-integrated convector, 4-pipe.
• Manufacturer / Brand: Jaga.
• Casing: Sendzimir-galvanised steel sheet, coated (standard finish RAL 7024).
• Grille: anodised aluminium or wooden grilles (various finishes available).
• Heat exchanger: dynamic 4-pipe hydronic heat exchanger.
• Activators: tangential mini activator(s), 24 VDC.
• Flexible connections: stainless-steel, 1/2", 15 cm length (standard).
• Condensate handling: optional condensate tray for drainage (ø 2 cm) for cooling versions.
• Height adjustment: base adjustable from 0 to 4.5 cm; fine adjustment up to +0.8 cm.
• Hydronic & electrical connection orientation: left-hand side standard (configurable).
• Noise reference: ISO 3741:2010 measurement conditions (see performance table).
• Options / accessories: empty housing, corner piece, feet for raised floors, pre-mounted Jaga Dynamic Product Controller (JDPC), DIN-rail power supply, Siemens thermostats (RDG264KN, RDG260T), connection kits (Set 297, Set 299) and other options.
