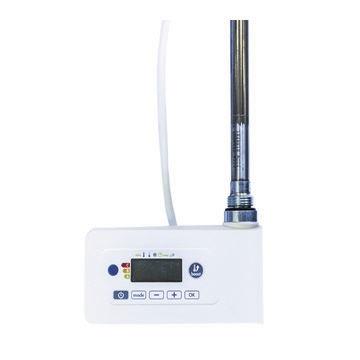

Radiator heating element SANI

white

Product
Electric resistance element for the Sani series, available in several variants (without tee, with 1 tee, with 2 tees). Designed to be mounted in Sani range radiators to provide selectable electric auxiliary heating power.

Resistance without tee
Code — Watts — Length (mm)
9096 0300 — 300 — 40
9096 0500 — 500 — 48
9096 0750 — 750 — 60
9096 1000 — 1000 — 72
9096 1250 — 1250 — 85

Resistance with 1 tee
Code — Watts — Length (mm)
9096 0300/. . . — 300 — 40
9096 0500/. . . — 500 — 48
9096 0750/. . . — 750 — 60
9096 1000/. . . — 1000 — 72
9096 1250/. . . — 1250 — 85

Color code: to be specified for some variants

Resistance with 2 tees
Code — Watts — Length (mm)
9096 0300/. . . /2 — 300 — 40
9096 0500/. . . /2 — 500 — 48
9096 0750/. . . /2 — 750 — 60
9096 1000/. . . /2 — 1000 — 72
9096 1250/. . . /2 — 1250 — 85

Suitable for

• Sani Ronda
• Sani Basic

Characteristics / Technical specifications

• Series: Sani
• Type: Electric resistance (heating element) for Sani radiators
• Configurations: without tee, with 1 tee, with 2 tees
• Main references: 9096 0300, 9096 0500, 9096 0750, 9096 1000, 9096 1250 (variants with suffixes for tee fittings)
• Available powers: 300 W, 500 W, 750 W, 1000 W, 1250 W
• Associated lengths (mm): 40, 48, 60, 72, 85
• Note: color code to be specified for certain variants
