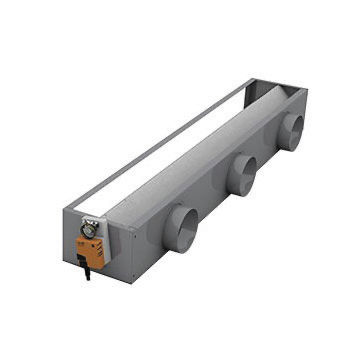

HVAC plenum box BRIZA 22 RECESS
Add to favorites
Compare this product
Characteristics
- Other characteristics
- HVAC
Description
Description
Code table
Code | L | # Connections
8763 0301 | 55 | 1
8763 0302 | 75 | 2
8763 0303 | 95 | 2
8763 0304 | 125 | 3
8763 0305 | 155 | 4
Characteristics / technical specifications
- Return-air damper for Briza 22 BT & BF
- Motorized air renewal box 230 V AC, with adjustable modulating damper (damper position controlled by 0–10 V signal)
- Connection Ø 125 mm
- Painted steel in dark grey - RAL 7024
Code table
Code | L | # Connections
8763 0301 | 55 | 1
8763 0302 | 75 | 2
8763 0303 | 95 | 2
8763 0304 | 125 | 3
8763 0305 | 155 | 4
Characteristics / technical specifications
- Type: Return-air damper / air renewal box for Briza 22 BT & BF
- Power supply: 230 V AC
- Control: Adjustable modulating damper, position by 0–10 V signal
- Connection diameter: Ø 125 mm
- Material: Painted steel
- Finish: Dark grey - RAL 7024
- Available references (see table): 8763 0301, 8763 0302, 8763 0303, 8763 0304, 8763 0305
