Radiator fitting CURVE M24

metalthreaded

Overview

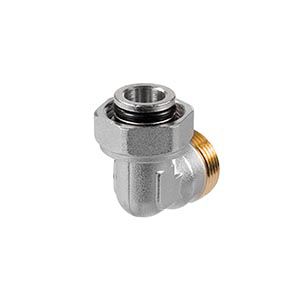

Compact 90° elbow for threaded M24 connections, intended to change the direction of a fluid line while maintaining a threaded M24 interface.

Specifications / Technical data

• Product title: 90° Elbow M24 x M24
• Code: 5095 020
• Category: Valves
• Brand: Jaga
• Model (commercial name): Curve M24
• Connection: Threaded M24 x M24, 90° angle
• Images available (file names): Valves_0027_Curve_M24_90°.jpg, Valves_0026_Curve_M24_90°DIM.jpg

Applications

• Used in hydronic and heating systems, radiator and valve connections, and industrial piping where a compact 90° threaded elbow with M24 interface is required.

Installation and maintenance

• Install on compatible M24 threaded fittings; use appropriate sealing (gaskets or tape) as specified by Jaga.
• Follow Jaga's installation instructions and recommended tightening torque; verify tightness and leak-free operation after assembly.
• Replace seals periodically and inspect for wear in regular maintenance operations.

Reference

• For detailed dimensions, installation drawings or technical datasheet, refer to Jaga documentation or contact your supplier. Code: 5095 020.
