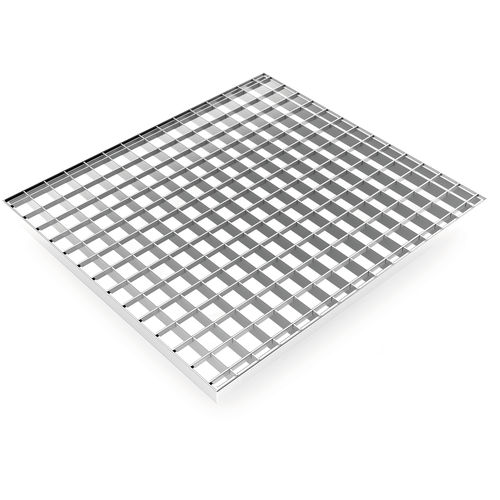

Steel grating PRESS-LOCKED

stainless steelaluminumfor industrial flooring

JK Technic press-locked gratings are composed of flat cold-laminated insert bars pressed into existing notches in bearing bars. They are manufactures using techniques that guarantee a constant production quality (manufacture according to RAL GZ638) and are typically made from S235JR steel. Commonly used for manufacturing technical walkways and staircase steps, it is also used for aesthetic elements such as sun-breaker and privacy screens, as well as in construction for sections of façades, fencing and solid balustrades. MESH The mesh spacing is defined in accordance with the standards and loads that must be respected: For a BB thickness of 2-3 mm: The BB spacing is typically a multiple of 11.11. The IB spacing is typically a multiple of 11.11. For a BB thickness of 4-5 mm: The BB spacing is typically a multiple of 18. The IB spacing is typically a multiple of 17. Other options are available on request. BEARER BAR Standard height: 20-150 mm. Standard thickness: 2-8 mm. Other options are available on request. TRANSVERS BAR Spacer: 10 x 2 mm. Other options are available on request. DIMENSIONS Maximum length of bearer bars: 4000 mm. Maximum length of spacers: 2000 mm. MATERIAL S235JR steel as per EN 10025 standards.. Stainless steel 304 ( 1.4301 ). Stainless steel 316 ( 1.4571 ). Aluminium AlMg3. Other options are available on request.
