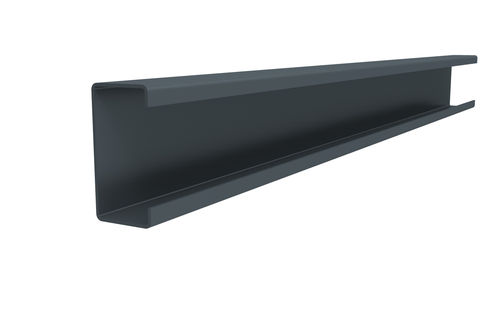

Steel profile JI C100

Crooffor mullions and transoms

Overview
Cold-formed galvanised C-profiles intended as secondary purlins and secondary fixings in structural systems for roofs and claddings.

Thickness & weight

• 1.5 mm: 2.6 kg/m
• 2.0 mm: 3.45 kg/m
• 2.5 mm: 4.25 kg/m

Characteristics

• Material: Steel S350 GD
• Cold-formed geometry for use as purlins/secondary rails in steel structures

Coating / Galvanisation

• Sendzimir galvanisation
• 275 g/m² (ZM310) or equivalent hot-dip galvanisation according to EN 1461
• Option: non-oiled

Reference standards

• Galvanized steel: EN 10346:2015
• Execution / tolerances: EN 1090-2:2018; tolerances: EN 10143:2006
• Calculations: EN 1993-1-3:2006

Technical specifications

• Product name (commercial designation): JI C100
• Application: Purlins — cold-formed galvanised C-profiles for secondary fixings in structural systems (roofs and claddings)
• Available lengths: 500 mm – 13600 mm
• Available thicknesses and linear weights: 1.5 mm = 2.6 kg/m; 2.0 mm = 3.45 kg/m; 2.5 mm = 4.25 kg/m
• Material grade: Steel S350 GD
• Coating: Sendzimir galvanisation (275 g/m² / ZM310) or equivalent hot-dip galvanisation to EN 1461 (non-oiled option)
• Standards: EN 10346:2015, EN 1090-2:2018, EN 10143:2006, EN 1993-1-3:2006
• Available resources: technical data sheet and CAD/drawing files available in downloads
