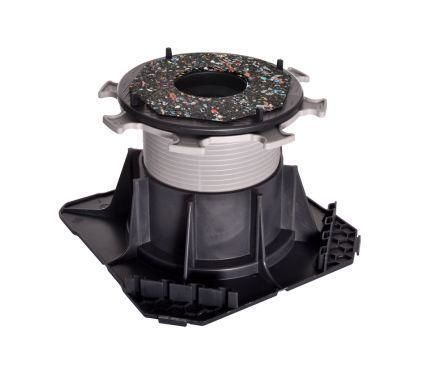

Adjustable height adjustment system CLEMAN®

for raised floors

Description
Adjustable-height support for constructing terraces with tiles, ceramics or paving, intended for pedestrian use. The self-levelling pedestals allow installation on uneven or irregular substrates and can compensate or create a slope up to 5% regardless of ground type. With the CLEMAN® range it is possible to pre-set pedestals using the screwing tip, adjust height manually with the nut and fine-tune the height by a few millimetres with the adjustment key.

Features and technical elements

• Self-levelling adjustable terrace pedestal.
• Designed for terraces with tiles, ceramics or paving (pedestrian use).
• Enables terrace installation on uneven or irregular ground.
• Compensation or creation of slope up to 5%.
• Three adjustment methods: pre-setting with screwing tip, manual adjustment with nut, micrometric adjustment with the adjustment key.

Construction details and usage points

• 4 breakable 4 mm spacers to obtain a smooth surface.
• Manual, millimetre-accurate height adjustment via the nut (no additional tools required for manual adjustment).
• Reinforcements for increased compressive strength.
• Self-locking grooves on the underside of the pedestal in contact with the ground for secure holding.
• 2 integrated cladding supports on the flange for optimized lateral finishing.
• Acoustic rubber included: reduces vibrations and resonances by about half compared with using a pedestal alone.
• Three adjustment possibilities with screwing tip, nut and adjustment key.

Labels and guarantees

• FDES
• Compliant with DTU
• Label MORE
• Made in France
• 10-year warranty
• Recycled material
• ISO 14001
• ISO 9001
• Sorting information (Info-tri)

Key benefits

• Enables terrace construction on uneven or irregular ground.
• CLEMAN® offers 3 adjustment methods: pre-setting (tip), manual (nut) and fine adjustment (key).
• Optimized lateral finishing thanks to 2 integrated supports on the flange.
• Quick and easy installation.

Technical characteristics / specifications

• Head diameter (mm): 137
• Spacer thickness (mm): 4
• Material: Recycled polypropylene
• Colour: Black (nut grey)
