Polypropylene mounting clip PROFILDECK®

for patioexteriorconcealed

Description

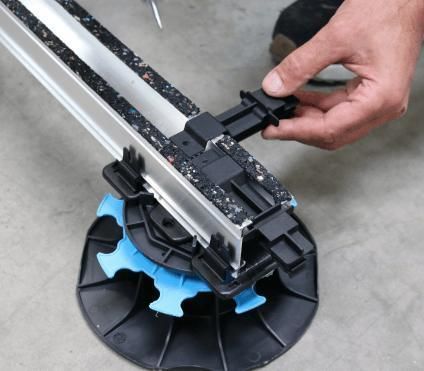

The PROFILDECK® fixing clip for clip-on finishing profiles attaches directly to the PROFILDECK® aluminium joist (H27 and H55). Designed for slab decking, this accessory secures the profile and enables a quick, easy lateral finish.

Compatibility

• Deck on pedestals
• Paver pedestals
• Accessories
• PROFILDECK® aluminium joists
• Deck finishing
• Deck pedestal
• Slab decking
• Decking

Certifications & labels

• DTU-compliant
• 10-year warranty
• Info-tri
• ISO 14001
• ISO 9001
• MORE label
• Made in France
• Recycled material

Key features

• Locks the retention of the finishing profile.
• Serves as a visual reference for correct alignment of the paving slab.
• Resistant to UV and frost.
• Resistant to temperatures from -30°C to +60°C.
• Quick and easy installation.

Installation & application

• For pedestrian use only.
• For outdoor use only.
• At the end of a joist: allow 1 clip.
• In a corner: allow 2 clips.
• Along a 2.40 m joist: 1 clip every 80 cm.
• For an end-of-joist finish: insert the clip into the joist rail on the slab side.
• For a along-joist finish: position the clip on the joist rail (the notch acts as an alignment guide).

Product documentation available
Product data sheet and PROFILDECK® specific installation instructions (technical documents and compatibility tables available).

Characteristics / technical specifications

• Product reference: IPDCLIP10000
• Colour: Black
• Material: Recycled polypropylene
• Weight (per piece): 0.028 kg
• Packaging: Bag of 8 pieces (box of 10 bags)
• Designed for: PROFILDECK® aluminium joists H27 and H55
