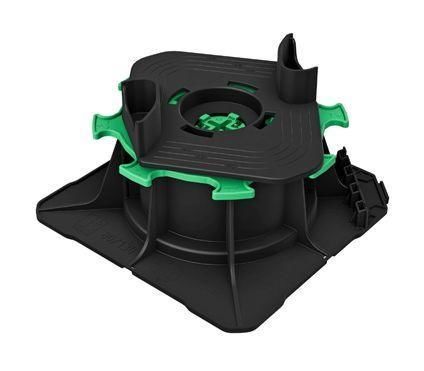

Recycled plastic terrace pedestal EASIO

polypropylenefrost-resistantself-leveling

Summary
Patented self-levelling, height-adjustable support designed for the construction of pedestrian wood or composite decks. Monobloc pedestal with square flange to ease corner installation and diamond-shaped self-levelling head to compensate slopes up to 5% and enable double-joist configuration.

Functions and advantages

• Diamond-shaped head: allows double joist arrangement with a single row of pedestals and holds a temporary spacer before fixing.
• 8 lugs on the ergonomic nut: fine manual millimetre adjustment.
• Height adjustment: manual or with EASIO / CLEMAN screw driver bit.
• Two support tabs: centring of joists (for joists 40 to 80 mm).
• Self-locking grooves and internal reinforcements: increased compressive strength and ground retention.
• Chamfered and multi-perforated flange: prevents damage to the substrate and limits water retention.
• Self-levelling head: compensates and creates slopes up to 5%.
• Monobloc, stackable pedestal, quick and easy to install; UV and frost resistant, suitable for -30°C to +60°C.

Key features

• Diamond head enables double-joist layout and joist centring.
• 2 support tabs: positioning and centring for joists 40–80 mm.
• Pre-adjustment possible off-site with the screw driver bit.
• Option to insert one or two screws when joining joists.
• 2 integrated finishing supports on the flange for lateral finishing.
• Square flange shape: facilitates corner installation.
• Patented system, manufactured in France.
• 10-year warranty. Compliant with DTU. Made from recycled polypropylene. Label MORE. ISO 9001 / ISO 14001.

Uses & applications

• Construction of pedestrian natural wood or composite decks.
• Installation of terraces on uneven or irregular ground.
• Compensation or creation of slopes up to 5% regardless of substrate type.
• Positioning and centring of joists (40 to 80 mm); double-joist arrangement possible with a single row of pedestals.
• Can be used with EASIO lateral finish to lock the self-levelling function if required.

Accessories & compatibilities

• EASIO / CLEMAN screw driver bit for height adjustment.
• EASIO lateral finish to lock the self-levelling function if necessary.
• Compatible with EASIO / CLEMAN riser ranges and accessories listed in the product documentation.

Technical specifications

• Colour: Black (pedestal); nut green.
• Material: Recycled polypropylene.
• Flange dimensions: 192 mm x 192 mm.
• Pedestal head bearing area: 117 cm².
• Available heights: selectable ranges 40–55 mm, 55–80 mm, 80–130 mm, 130–230 mm.
• Tab height: 25 mm.
• Packaging: varies by selected height.
• Stackable: Yes.
• Durability: UV and frost resistant; operating temperature -30°C to +60°C.
• Origin / warranties: Made in France; 10-year warranty; compliant with DTU; ISO 9001 / ISO 14001; recycled material.
