Thermal insulation Frigofresh

polyurethanepanelinterior

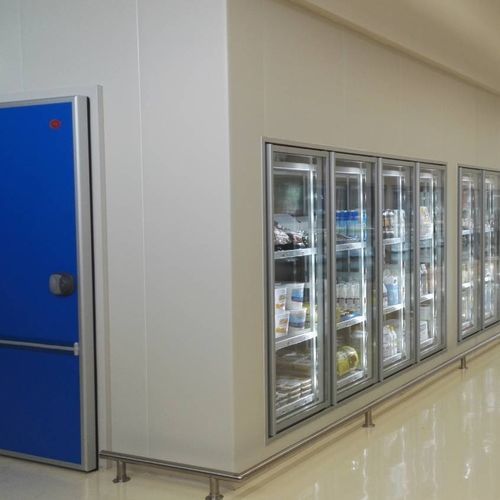

The thermal insulating Frigofresh panels of Kamaridis GlobalWire Group are complex, self-supporting structural elements, especially designed for the construction of cooling chambers and rooms with high thermal insulation and water tightness requirements and controlled special ambient temperature and humidity. They are formed in 80mm to 140mm thick sheets and its main use is for conservation chambers in contrast to Frigocool polyurethane panels which are for deep freezers produced in 160mm to 200mm thick sheets. Characteristics After extensive research in both domestic and foreign markets and the gathering of technical details and opinions from specialist in the field of cooling chambers. Kamaridis GlobalWire Group pioneers a new trapezoidal junction, a method that eliminates thermal bridge to the steel sheet and also excludes other hardcore pu polyurethane infusions to the larger gauzes. This new Trapezoidal junction of panels 80-140mm that are intended for maintenance chambers (+5 to -18°C) and panels 160-200mm that are intended for deep freezing chambers (blast freezer to -50°C), pilots the way because the elusive air is linear and ends when it becomes trapezoidal, thus eliminating thermal loss. By virtue of a truly proper fitting, Frigocool thermal insulating polyurethane panels absolutely abide by their specifications satisfying all customer requirements. They consist of two metal sheets and coating of self-extinguishing tough polyurethane resin. The standardized plate sheets of the panels are formed from pre-painted steel and can be flat or of smooth modulation such as WPU.
