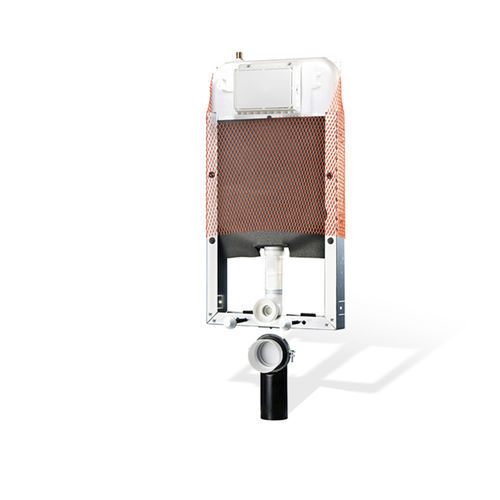

Polypropylene toilet tank FIX PRATIKA 9.0

manually-operatedbuilt-inMade in Italy

Mounting frame for wall-mounted WC equipped with Monolith 9.0 cistern (9/6lt) for load-bearing installations. Not suitable for lightweight walls or plasterboard. Anti-corrosion galvanised frame Overall dimensions for 100 mm raw walls Structure certified to bear 400kg according to standards UNI EN 977/1-997-89500/2 if installed correctly 9lt high density PE monoblock container without joints Repairable in case of accidental drilling Plaster holder fixing mesh Extruded closed-cell PE insulation, anti-condensate and soundproofing with thermal resistance FlexValve: discharge valve with silicon gasket. Made of polypropylene with silicone additive (PTE) NORMA-PLUS float valve, acoustic class 1, LGA-TUV approved adjustable between 9 and 6lt (standard for code 377369) Maintenance operations without using tools Pneumatisable without the need to replace internal components Anti-corrosion seamless galvanised frame 2 mm metal thickness with 8 anchoring points Monolith 9.0 cistern fixed on frame WC fixing centre distances for M12 threaded bars adjustable to 180 mm and 230 mm M12 threaded rods for WC fixing with nuts, protective sleeves and caps White pipe for connection to wall-mounted WC and clamp gasket ø 90mm black sleeve with gasket Black outlet bend 90° ø 90 mm Fixing and assembly kit Dismountable stop valve 3/8”-3/8” including fitting 1/2”-3/8” Protection template to shape perimeter of tiles or plaster Protection caps for discharge pipe and outlet bend IT NEEDS TO BE INTEGRATED WITH DUAL COUNTERPLATE COD.
