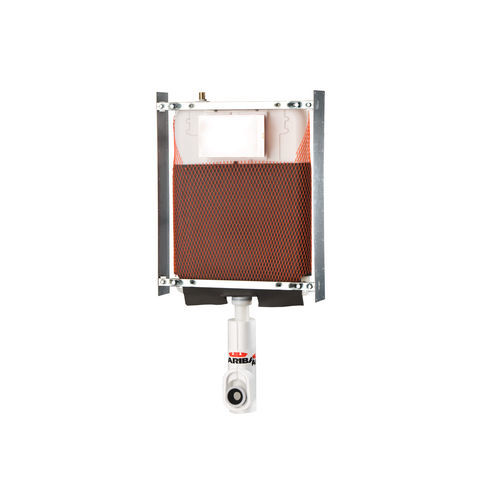

Polypropylene toilet tank KARTON FIX 9.0

built-inMade in Italy

Mounting frame for floor-standing WCs complete with 9-lt Monolith 9.0 flush-mounted cistern. Also available in 6lt version. For plasterboard walls. Karton Fix is the ideal solution for installations in equipped plasterboard walls: no kit required and reduced risk of error. Anti-corrosion galvanised frame Thickness 100 mm 9 litre one-piece high-density PE container without splice points Repairable in case of accidental drilling Plaster holder fixing mesh Extruded closed-cell PE insulation, anti-condensate and soundproofing with thermal resistance FlexValve: discharge valve with silicon gasket. Made of polypropylene with silicone additive (PTE) Norma-Plus float valve acoustic class 1 LGA-TUV approved Maintenance operations without using tools Pneumatisable without the need to replace internal components Dismountable stop valve 3/8”-3/8” including fitting 1/2”-3/8” Set of self-tapping screws for frame fastening Telescopic polystyrene insulated exhaust pipe with universal conical clamp, height adjustable up to 100 mm Removable drain Drain valve Norma-Plus float valve Protection template to shape perimeter of tiles or plaster Protection caps for outlet pipe IT NEEDS TO BE INTEGRATED WITH DUAL COUNTERPLATE COD.
