Basic information
Weight153 kg
Heat output18 kW
Heating capacity m2/m3180 m2 / 450 m3
Outer dimensions (wxhxd)680x530x435 mm
Technical data
Heat output
18 kW
Heating capacity m2/m3
180 m2 / 450 m3
Outer dimensions (wxhxd)
680x530x435 mm
Glass size
590x380x4 mm
Fuel diameter
200 mm
Efficiency
73,9 %
Accessories
External air intake- not included
Additional informations
dimensions may deviate +/- 2mm
Description

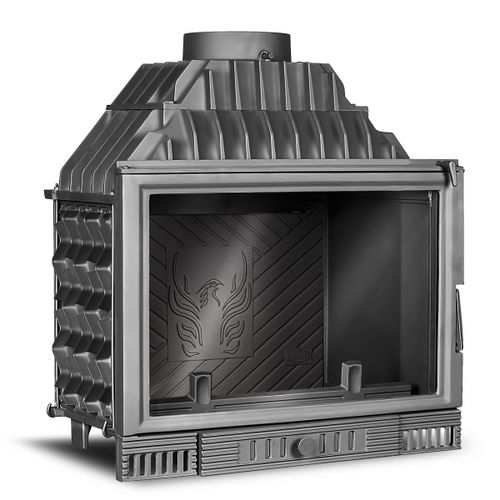

The W1 Fenix solid fuel (wood), class EN-GJL-200 cast iron fireplace insert has following advantages:
It is equipped with:
1. baffle
2. damper
3. extra back plate, preventing excessive insert wear
4. decorative fence screen, which prevents wood from falling out
5. air intake adjustment through ash drawer
6. external air intake- not part of fireplace kit.
Densely placed ribs, which increase the heat exchange surface.
