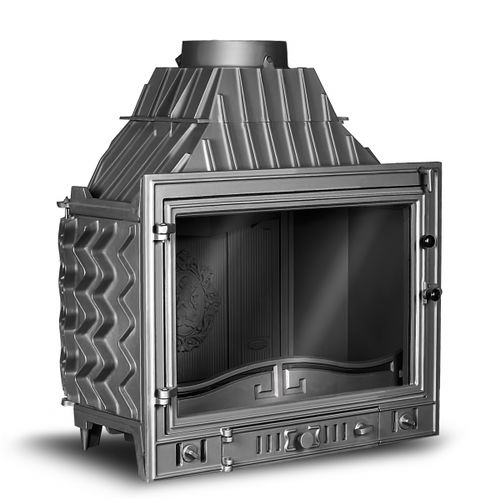

Wood-burning fireplace insert W3

solid fuel

Basic information Weight141 kg Heating output16,7 kW Heating capacity m2/m3167 m2 / 417,5 m3 Outer dimensions (wxhxd)700x540x420 mm Technical data Heating output 16,7 kW Heating capacity m2/m3 167 m2 / 417,5 m3 Outer dimensions (wxhxd) 700x540x420 mm Glass size 590x380x4 mm Fuel diameter 200 mm Efficiency 74,1 % Accessories External air intake- not included Additional informations the dimensions may be different +/- 2 mm Description The W3 solid fuel (wood), class EN-GJL-200 cast iron fireplace insert has following advantages: It is equipped with: 1. baffle 2. damper 3. extra back plate, preventing excessive insert wear 4. decorative fence screen, which prevents wood from falling out 5. air intake adjustment through ash drawer 6. external air intake- not part of fireplace kit. Densely placed ribs, which increase the heat exchange surface.
