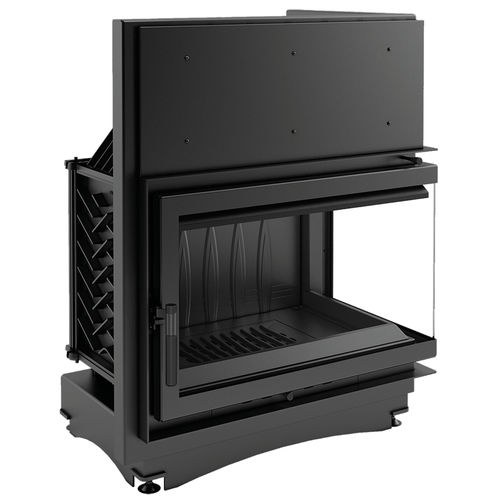

2-sided fireplace insert OLIWIA/P/BS

wood-burningcast ironsteel

Technical Specifications Efficiency (%) 79,0 Exhaust outlet diameter (mm) 200 Complies with Ecodesign criteria No Designed for heat recovery unit No Fuel type recommended seasoned hardwood with moisture ≤20% CO emission (at 13% O 2 ) ≤ given in % 0,15 Flue gas temperature (℃) 383,0 Max log length (cm) 50 Emission of dust (mg/Nm 3) 31,0 Compliance with BImSchV 2 standard No Glazing type lateral Opening of the doors to the right Material cast iron, steel Ashpan Yes MAXIMUM USE OF ENERGY Maximum use of heat due to densely spaced radiators and the wall of the insert made of high quality cast iron with a thickness of 8 mm. Increased heat exchange surface between the hot exhaust gases and the room due to the high flue. Combustion of fuel particles thanks to deflector, which extends the exhaust gas path. Increased efficiency of the insert through manual control of chimney draft by using the built-in damper. Manual control over the combustion process carried out by ash tray regulator. SAFETY AT THE HIGHEST LEVEL Front of insert is equipped with a heat-resistant ceramics that can withstand temperatures up to 660°C. Decorative fence helps to maintain the tidiness and protects against falling out of wood.
