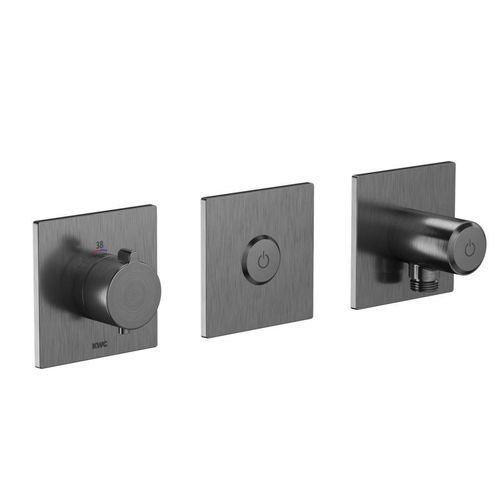

Brass bathtub mixer set 20.004.853.179

integratedcontemporary1-hole

Product description

• Trim kit with thermostatic function unit KWC HOMEBOX for bathtub installation.
• Outfall options: integrated hose connection with ON/OFF push-button CHOICE including flow regulator; second consumer outlet above or below with ON/OFF push-button CHOICE.
• SkinProtect safety stop to prevent scalding.
• Intrinsically safe against backflow in accordance with applicable standards (DIN EN 1717).

Scope of delivery

• Thermostatic mixer unit
• Diverter unit
• Hose connection unit with ON/OFF push-button and flow regulator
• Cover plate fastening system (screw-free)

To be ordered separately

• Concealed installation unit KWC HOMEBOX Thermostatic / lever mixer 2 consumers - 39.006.261.931

Available colours / finishes

• chromeline
• brushed gold
• matt black
• brushed steel
• brushed copper
• brushed graphite (this product)

Technical summary (table)
Handling: Front lever
Color code: brushed graphite
Installation type: Wall-mounted
Article type: Thermostatic
Concealed unit: Trim set with safety device in accordance with DIN EN 1717
Material: Brass
Maximum height: 100 mm
Width maximum: 362 mm
Acoustic group: II
Energy Label (CH): B
Flow rate: 19.5 l/min (3 bar)
Spray outlet flow rate: 14 l/min (3 bar)
Spray outlet acoustic group: I

Technical specifications

• Handling: Front lever
• Color code: brushed graphite
• Installation type: Wall-mounted
• Article type: Thermostatic
• Concealed unit: Trim set with safety device in accordance with DIN EN 1717
• Material: Brass
• Maximum height: 100 mm
• Width maximum: 362 mm
• Acoustic group: II
• Energy Label (CH): B
• Flow rate: 19.5 l/min (3 bar)
• Spray outlet flow rate: 14 l/min (3 bar)
• Spray outlet acoustic group: I
