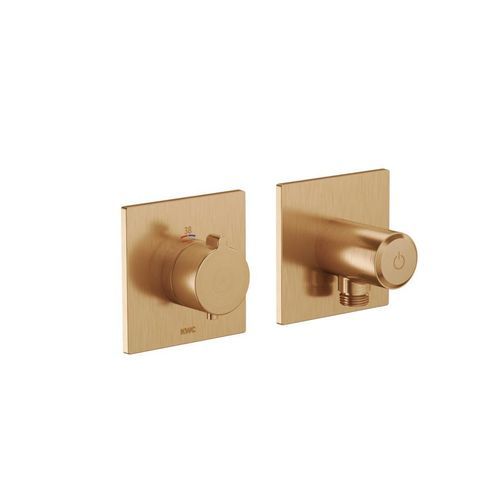

Manual thermostatic valve 21.004.853.178

for showerwall-mountedcopper-colored

Product overview
Trim kit with thermostatic function unit (KWC HOMEBOX) for shower applications. Includes integrated hose connection with ON/OFF push-button (CHOICE) with flow regulator and safety features to protect against scalding and backflow.

Features

• Thermostatic mixing function (KWC HOMEBOX)
• Outflow with integrated hose connection and ON/OFF push-button CHOICE with flow regulator
• SkinProtect safety stop (prevents scalding)
• Intrinsically safe against backflow

Scope of delivery

• Thermostatic mixer unit (trim kit)
• Hose connection unit with ON/OFF push-button and flow regulator
• Fastening of the cover plate without screws

To be ordered separately

• Unit for concealed installation: KWC HOMEBOX Thermostatic mixer 1 Consumers (reference: 39.006.271.931)

Color options (product page selection)

• chromeline
• brushed gold
• matt black
• brushed steel
• brushed copper (selected)
• brushed graphite

Product identifiers
Internal number: 21.004.853.178
Internal product id: 3600018565
EAN/GTIN: 7612158582449

Technical specifications

• Handling: Front lever
• Color code: brushed copper
• Installation type: Wall-mounted
• Article type: Thermostatic
• Concealed unit: Trim set with safety device in accordance with DIN EN 1717
• Material: Brass
• Maximum height: 100 mm
• Width maximum: 231 mm
• Acoustic group: I
• Energy Label (CH): C
• Flow rate: 15 l/min (3 bar)
