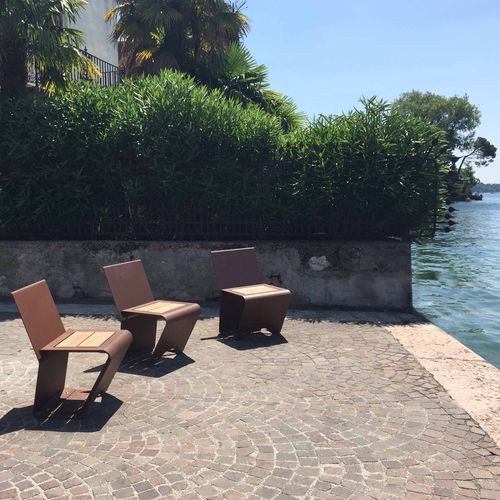

Contemporary chair HORIZON

woodengalvanized steelCOR-TEN® steel

Chair without backrest: The chair HORIZON WPC is made in steel, 60/10 thickness. The seat is made of 2 bent steel sheets, welded together through a continuous welding. Under the sheets 3 strong support plates, shaping the outline of the chair 30 mm h., are welded. On the seat there are 2 slats in wpc dim. 364×140 mm and 22 mm thick, fixed to the load-bearing structure through 2 strong brackets in steel, 60/10 thickness.The base of the metal structure has 4 holes (14 mm diam.) to be fixed to the ground through specific bolts (not provided). Weight: 28 kg Chair with backrest: The chair HORIZON WPC WITH BACKREST is made in steel (60/10 thickness). The chair is made of 2 bent steel sheets, welded together through a continuous welding. Under these sheets, 3 solid plates of support (H 30 mm) are welded. On the seat there are 2 slats in wpc dim. 364×140 mm and 22 mm thick, fixed to the load-bearing structure through 2 strong brackets in steel, 60/10 thickness.The backrest is fixed to the seat through 4 M8 screws and is made in steel (60/10 thickness). Between the seat and the backrest there’s a space of 20 mm, result of specific spacers made in brushed tubular stainless steel AISI 316 12×2 mm. The base of the metal structure has 4 holes (14 mm diam.) to be fixed to the ground through specific bolts (not provided).Weight: 50 kg Steel EN10111DD11 is used for the realization of this product and all the elements in this material, after all the different stages (cutting, bending, welding), are treated with electrogalvanizing according to the UNI regulations and are later polyester powder-coated with AkzoNobel RAL colours at choice.
