public trash can / steel / with built-in ashtray
PURE

Add to MyArchiExpo favorites
Compare this product Don’t compare this product
public trash can public trash can - PURE
{{requestButtons}}

Characteristics

  • Type:

    public

  • Material...:

    steel

  • Options and accessories:

    with built-in ashtray

Description

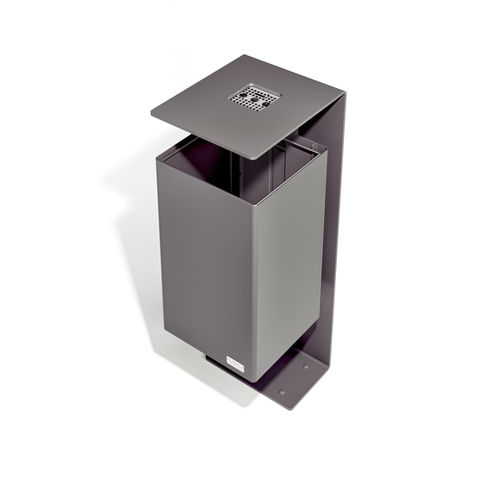

The PURE bin is made in steel sheet. The cover and the load-bearing structure are made of a single steel sheet of 80/10 thickness, with a central support made of a steel sheet of 20/10 thickness. The structure of the bin has a 15/10 thickness on the front part and on the side, and has a 20/10 thickness on the back and on the bottom. Inside the bin, a bag-holder in stainless steel or galvanized steel of 6 mm diam. is hooked. The bin can be emptied by rotating it on a pivot placed on the back of the bottom, thanks to the lock on the load-bearing structure. On the upper part of the load-bearing structure, an ashtray is placed, resulting from the fold of steel sheets of 10/10 thickness, and is provided with a rail system that allows the bin to be emptied without removing it completely. The bin can be fixed to the ground through 4 holes of 11 mm diam for the insertion of specific bolts (not provided).

For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and polyester-powder coating with RAL colors at choice. Such cycle is meant to guarantee the protection of the painted products in an environment of C4 corrosion class - UNI EN ISO 12944-2.

Weight 43 kg
Bin Capacity 45 lt
Ashtray capacity 0,75 lt
