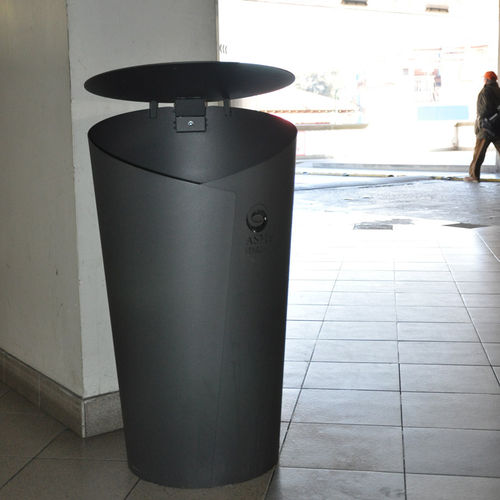

The outer part of the AVO bin is made in steel of 20/10 thickness, the inner container is made in galvanized steel of 8/10 thickness, polyester-powder coated. On the upper part there are 2 oval holes serving as handles and 2 holes of 10 mm diam. for the insertion of the elastic band. The cover of the AVO bin is made in steel of 30/10 thickness. It is fixed to the structure of the bin through a strong hinge, with a triangular key lock placed on the back of the structure. The bin can be fixed to the ground through 4 holes of 10 mm diam, placed on the bottom, and specific bolts (not provided). On demand, a base in concrete is available.
For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and polyester-powder coating with RAL colors at choice. Such cycle is meant to guarantee the protection of the painted products in an environment of C4 corrosion class - UNI EN ISO 12944-2.
The galvanized steel used is steel EN10346DX51D+Z and, unless otherwise stated, is not painted.
Weight of steel 30 kg
capacity 45 lt
