galvanized steel bike rack galvanized steel bike rack - TIME


  • Material:

    galvanized steel, wooden

  • Options and accessories:

    original design

  • Market:

    for public spaces

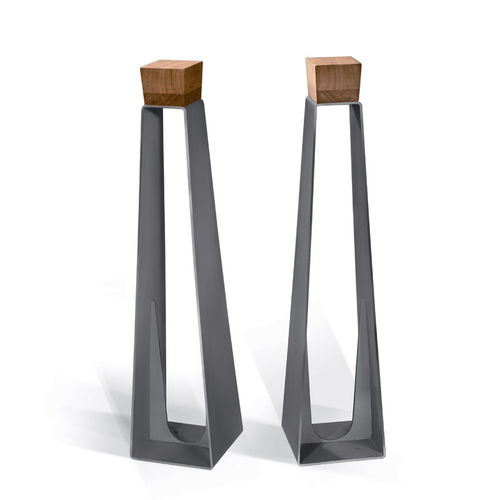

The bike rack TIME (1 bike) is made in steel of 60/10 thickness. It is cone-shaped with a square base made in exotic hardwood, which is fixed to the structure on the upper part through specific screws. The structure is supported on the lower part by a specific laser-cut sheet of 60/10 thickness, which also serves as a rail for the placement of the wheels of the bike. TIME can be fixed to the ground through specific bolts (not provided) through 2 holes of 10 mm diam.

For the realization of this product, Steel EN10111DD11 is used and later treated with a cycle of sandblasting, cataphoresis and polyester-powder coating with RAL colors at choice. Such cycle is meant to guarantee the protection of the painted products in an environment of C4 corrosion class - UNI EN ISO 12944-2.

The wood used is either Iroko or Okume, treated with natural, water-repellent, UV ray resistant oils.
