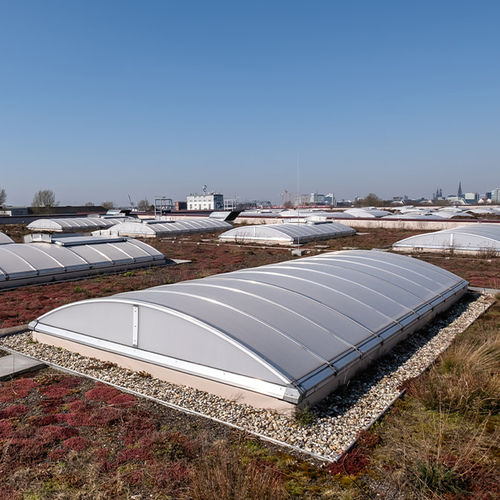

Flat roof rooflight B
lightingsmoke controlfor ventilation

flat roof rooflight
flat roof rooflight
flat roof rooflight
flat roof rooflight
flat roof rooflight
flat roof rooflight
flat roof rooflight
Add to favorites
Compare this product


Characteristics

Applications
flat roof
Attributes
lighting, smoke control, for ventilation
Options
for building renovation
Frame characteristics
with skylight frame
Material
aluminum, composite, glass fiber-reinforced polyester

Description

Perfect heat insulation with European approval for use Integrated, modular sytem which consists of many perfectly matched and innovative individual components The internal and external metal components, both in the load-bearing structure and in the flap systems, are completely thermally separated from one another. Use of the isothermal load converter (ITL) – a component for the use of material with excellent heat insulation properties at the anchor point Composite glazing with extremely low thermal transmittance coefficients LCA made easy: For our Continuous Rooflight B there is an comprehensive product declaration according to ISO EN 15804 Blower door tested: Suitable for airtight building envelopes with a maximum air permeability of 6.5m³/( h•m) at a differential pressure of 50 Pascal The world's first continuous rooflight with audited watertightness under heavy rain and storm (DRI 3.0 m/s²) Effective ventilating action with the Smoke Lift continuous rooflight B (DIN EN 12101-2), as a double or single flap In case of fire, they are quickly opened by means of thermal release, thermal and CO2 remote release or electric remote release All smoke and heat exhaust systems can also be combined with ventilation systems Extremely stable when open guaranteed by spring-loaded multiple joint traverses connected directly to the flap construction Optional: Glazing made of glass-fibre reinforced polyester is highly resistant to UV light and weathering due to its special material characteristics The test assessment for the Continuous Rooflight B is based on the approval guidelines drawn up by the European Organisation for Technical Approval (ETAG).

VIDEO
