Flat roof rooflight S​
lightingsmoke controlfor ventilation

flat roof rooflight
flat roof rooflight
flat roof rooflight
flat roof rooflight
flat roof rooflight
flat roof rooflight
flat roof rooflight
Add to favorites
Compare this product


Characteristics

Applications
flat roof
Attributes
lighting, smoke control, for ventilation
Options
for building renovation
Frame characteristics
with skylight frame
Material
aluminum, composite, polycarbonate, polyester

Description

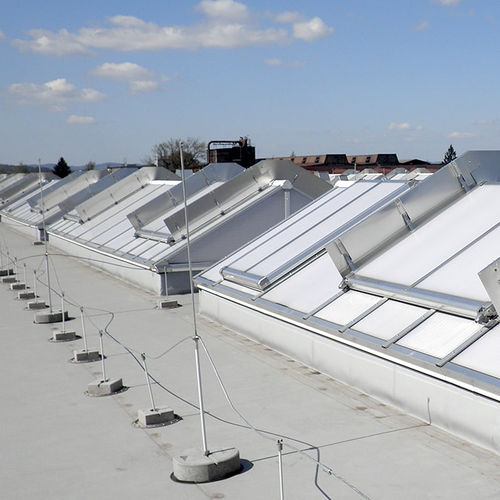

The world’s first Continuous Rooflight with certified watertightness in heavy rain and during storms (DRI 3.0 m²/s) The use of cutting-edge materials ensures that the product is completely thermally separated to meet the highest energy efficiency standards for modern industrial and administrative buildings Due to innovative system components, the Continuous Rooflight can withstand the strongest wind and snow loads Wide range of glazing options Glazing surfaces are available with 30° or 45° incline Design: Northern light shed roof with and incline of 30° on the rear of the shed and an incline of 60° on the northern light Mullion and transom construction and flap systems are thermally separated Isothermal Load Converter (ITL) – a component designed to incorporate highly thermally insulating materials in the base profile Composite glazing adapted to building-specific energetic requirements (panel thickness between 10mm and 32mm) with low heat transmission coefficients of up to 1.2 W/(m²K) High energy-saving daylight incidence and configurable solar heat input Energy-efficient, natural ventilation Life cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the Continuous Rooflight S in accordance to ISO EN 15804 Bionically Dynamic Tensioning Technology (BDT) in the ridge area for flexible force/ tension compensation in the event of heavy wind and snow loads Active Expansion Absorber (AEA) for absorbing expansion differences between seals and tensioning belts in the glazing bars Dynamic Torque Control (DTC) to ensure perfect tensioning and secure mounting of the glazing in the flap systems
