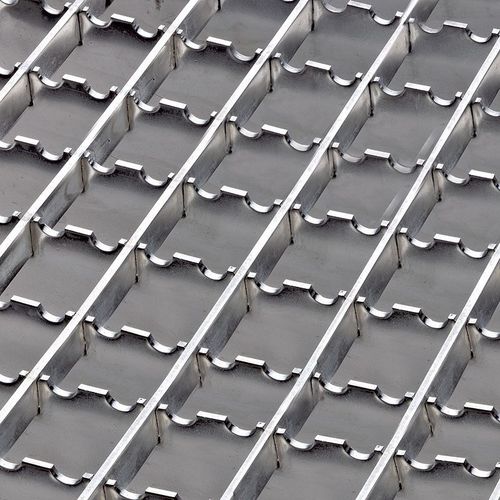

Polished stainless steel grating PLS/SS
for industrial flooringfor walkwaysfor staircases

polished stainless steel grating
polished stainless steel grating
polished stainless steel grating
polished stainless steel grating
polished stainless steel grating
Add to favorites
Compare this product


Characteristics

Material
polished stainless steel
Product applications
for industrial flooring, for walkways, for staircases
Technical characteristics
non-slip

Description

Type-PLS/SS is a superior anti-slip flooring product which is made from stainless steel. It is a pressed grating manufactured from either a serrated bearing bar and a plain flat transverse bars or with both bars serrated. Its conformity to hygiene and safety regulations combined with its corrosion resistance makes it a particularly appropriate product for flooring within the pharmaceutical, chemical or food industries. Two different grades are available: AISI 304 for general purpose; AISI 316 and AISI 316L for external use, exposure to harsh substances or marine conditions. Framed panels are made to custom sizes with alternative sections of bearing/transverse bar to meet different loading/span requirements All stainless steel gratings are pickled and electropolished for low surface roughness and maximum corrosion resistance. Type-PLS/SS: Mesh sizes (c/c): 33×11, 44×11, 55×11 and 66×11 mm Bearing bar: from 25×2 mm to 40×3 mm; transverse bar from 10×2 mm to 20×4 mm
