Galvanised steel grating STEREO-3
for facadeselectro-forgedsecurity

Galvanised steel grating - STEREO-3 - LANG AND FULTON - for facades / electro-forged / security
Galvanised steel grating - STEREO-3 - LANG AND FULTON - for facades / electro-forged / security
Galvanised steel grating - STEREO-3 - LANG AND FULTON - for facades / electro-forged / security - image - 2
Galvanised steel grating - STEREO-3 - LANG AND FULTON - for facades / electro-forged / security - image - 3
Galvanised steel grating - STEREO-3 - LANG AND FULTON - for facades / electro-forged / security - image - 4
Galvanised steel grating - STEREO-3 - LANG AND FULTON - for facades / electro-forged / security - image - 5
Galvanised steel grating - STEREO-3 - LANG AND FULTON - for facades / electro-forged / security - image - 6
Add to favorites
Compare this product


Characteristics

Material
galvanised steel
Product applications
for facades
Technical characteristics
electro-forged, security

Description

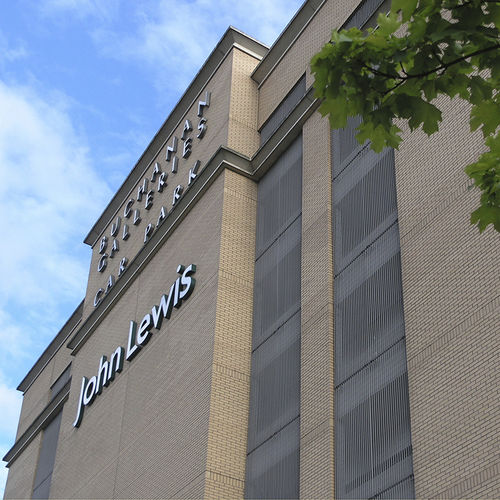

The Stereo range of gratings has a rectangular aperture: mesh size 62×132 mm (c/c). Stereo-3 offers the most economical solution where there is a requirement for a large size of panel, either as a wall cladding material or as a security screen. The overall size of panel is only limited by the practicalities of on-site handling, up to 4000×1870 mm. Composition & Appearance: for all vertical applications Lang+Fulton’s electrofused gratings are made from flat bars and attractive plain round bars, rather than the utilitarian twisted square bar which is produced by other manufactures and is more suited to industrial floor grating. The framed panels are supplied to custom sizes, fully finished with bracket fixings or holed for bolting into a secondary frame-work. Panels can be made to accept the horizontal loadings for pedestrian barriers up to a 3m span (BS 6399-1). Panels and ancillary steelwork can be supplied hot-dip galvanized only or with an additional powder coating in any RAL colour.
