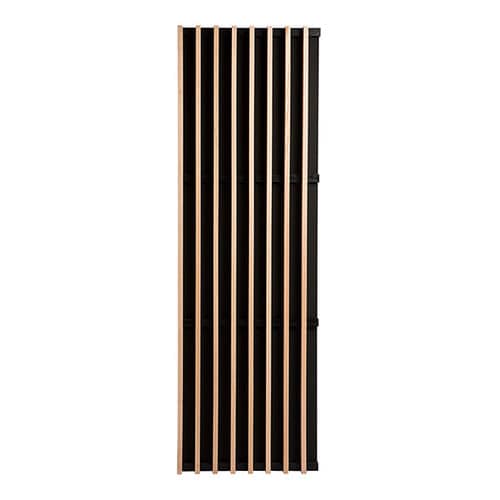

Acoustic solid wood panel for wall cladding
Cross-section of slats - 20 mm (face) x 68 mm (height)
Spacing between slats - 55 mm
Centre distance of slats - 75 mm
Black rear counter-slats - 34 x 45 mm
Overall thickness - 95 mm
Wood species - Pine, oak, douglas fir
Surface mass (pine) - 15,40 kg/m2
Surface mass (oak) - 19,50 kg/m2
Surface mass (douglas fir) - 15,20 kg/m2
Openness percentage - 73 %
Acoustic mineral wool tiles with black fleece facing 120 Kg / m3 surfaced with black fleece facing (format 600 x 600 mm ; 20 or 22 mm thickness).
Not supplied by Laudescher
Mechanical fixing by screwing
As per DTU 36-2
As per EN 14915
Reaction to fire possibilities Euroclass B-s1,d0 or B-s2,d0 according to species and finishes.
The various data relating to acoustic absorption (αp, αw, absorption class) have been calculated according to ISO 11654 standard (LINEA + acoustic supplement).
