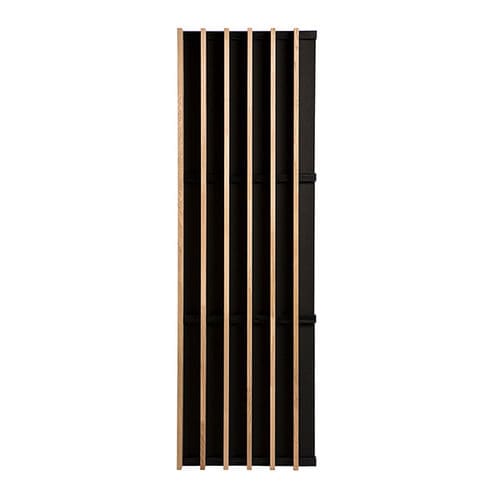

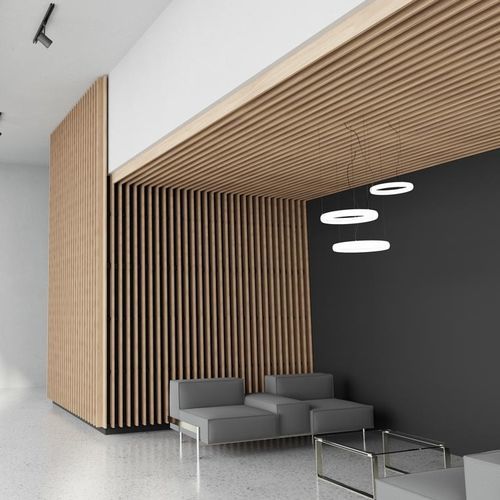

Acoustic solid wood panel for wall cladding
Panel dimensions - 1880 x 600 mm
Cross-section of slats - 20 mm (face) x 90 mm (height)
Spacing between slats - 80 mm
Centre distance of slats - 100 mm
Black rear counter-slats - 34 x 45 mm
Overall thickness - 117 mm
Wood species - Latted pine, latted oak
Surface mass (pine) - 15,30 kg/m2
Surface mass (oak) - 19,40 kg/m2
Openness percentage - 80 %
Acoustic mineral wool tiles with black fleece facing 120 Kg / m3 surfaced with black fleece facing (format 600 x 600 mm ; 20 or 22 mm thickness).
Not supplied by Laudescher
Acoustic absorption was measured as per the ISO 354 standard. The various data relating to acoustic absorption (αp, αw, absorption class) have been calculated according to ISO 11654 standard (LINEA + acoustic supplement).
