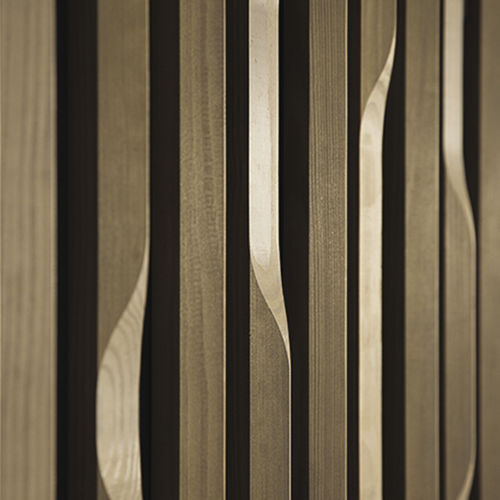

Acoustic wall panel LINEA EDGE

solid woodoakpine

Acoustic solid wood 3D panel for wall cladding Cross-section of slats - 40 mm (face) x 40 mm (height) Spacing between slats - 35 mm Centre distance of slats - 75 mm Black rear counter-slats - 34 x 45 mm Wood species - Pine, oak Surface mass (pine) - 12,4 kg/m2 Surface mass (oak) - 15,8 kg/m² Openness percentage - 47 % Acoustic mineral wool tiles with black fleece facing 120 Kg / m3 surfaced with black fleece facing (format 600 x 600 mm ; 20 or 22 mm thickness). Not supplied by Laudescher Mechanical fixing by screwing As per DTU 36-2 As per EN 14915 Reaction to fire possibilities Euroclass B-s1,d0 or B-s2,d0 according to species and finishes. The various data relating to acoustic absorption (αp, αw, absorption class) have been calculated according to ISO 11654 standard (LINEA + acoustic supplement).
