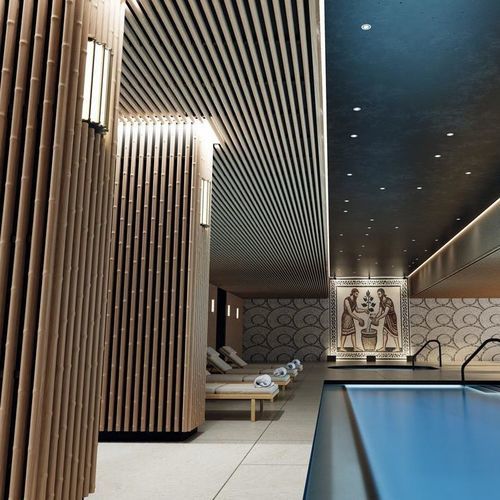

Acoustic wall panel LINEA JUNGLE

Douglas firsolid woodoak

Short description
Solid wood acoustic panel for wall cladding, designed for screw-on mounting to metal or timber framing. Available in multiple panel lengths and finishes.

Key features

• Screw-on panel for metal or wood framing
• Available panel sizes: 2495 x 600 mm, 1880 x 600 mm, 1265 x 600 mm
• Slat system with visible face and rear counter-slats for stable fixation

Acoustic performance
Weighted absorption index: αw = 0.85
Absorption class: Class B
The absorption data (αp, αw, absorption class) were calculated according to ISO 11654 for the system LINEA + acoustic complement (LR 20 mm on E50 mm plenum).

Finish / Reaction to fire (to EN 13501-1)
Fire-retardant treatment. Euroclass B-s1, d0 or B-s2, d0 depending on wood species and finish.

Installation
Panel installation by screwing, in accordance with NF EN 14915 and DTU 36-2. Suitable for new builds and refurbishments when mounted on appropriate framing.

Back panel
Recommended backing: rigid acoustic rockwool slabs (2.4 kg/m²) covered with black fleece (600 x 600 mm; thickness 20 or 22 mm). Backing panels not supplied by Laudescher.

Wood and finishes

• Wood species: Pine, Oak
• Slat finish: Clear varnish (recommended for sensitive environments)
• Wax colour finishes available: White, Douglas, Oak, White oak, Cenza, Green, Wenge, Black; other colours on request

Technical data (table)

• Panel dimensions: 2495 x 600 mm; 1880 x 600 mm; 1265 x 600 mm
• Slat cross-section: 40 mm (face) x 41 mm (height)
• Slat spacing: 35 mm
• Centre distance of slats: 75 mm
• Black rear counter-slats: 34 x 45 mm
• Total panel thickness: 76 mm
• Area density: Pine 12.5 kg/m²; Oak 14.4 kg/m²
• Openness percentage: 47 %

Notes
Acoustic data were calculated in compliance with ISO 11654 for the LINEA system with acoustic complement (LR 20 mm on E50 mm plenum). Verify fire classification and finish compatibility for project-specific requirements.

Characteristics / technical specifications

• Product family: LINEA 3D wall panel — Linea Jungle
• Mounting: Screw-on panel for metal or wood framing
• Available panel dimensions: 2495 x 600 mm; 1880 x 600 mm; 1265 x 600 mm
• Slat cross-section: 40 mm (face) x 41 mm (height)
• Slat spacing: 35 mm; centre distance of slats: 75 mm
• Black rear counter-slats: 34 x 45 mm
• Total panel thickness: 76 mm
• Wood species: Pine, Oak
• Area density: Pine 12.5 kg/m²; Oak 14.4 kg/m²
• Openness percentage: 47 %
• Acoustic performance: Weighted index αw = 0.85; Absorption class B (ISO 11654)
• Back panel (not supplied by Laudescher): Rigid acoustic rockwool slabs 2.4 kg/m² covered with black fleece (600 x 600 mm; 20 or 22 mm thickness)
• Reaction to fire: Fire-retardant, Euroclass B-s1,d0 or B-s2,d0 depending on wood and finish
• Installation standards: NF EN 14915; DTU 36-2
• Finishes: Clear varnish; multiple wax colour finishes. Other colours on request.
