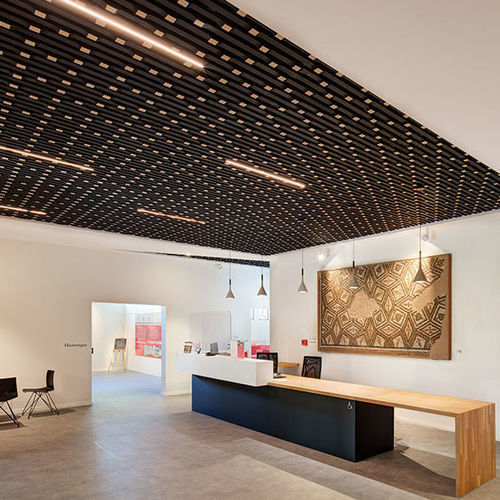

False ceiling acoustic panel LINEA PIX

Douglas firsolid woodoak

Product overview
Solid-wood acoustic panel designed for suspended ceilings. Linea Pix provides a slatted timber finish with an acoustic backing for improved sound absorption in commercial and public interiors.

Characteristics

• Available in two installation versions: mounted on T24 exposed grid or screwed onto a metal or timber subframe
• Installation compliant with NF EN 13964 and DTU 58-1

Acoustic performance
Weighted absorption index: αw = 0.75 (Absorption class C). Values (αp, αw, absorption class) calculated per ISO 11654; absorption measured per ISO 354 on assemblies including Linea panel + acoustic complement + 20 mm rockwool on an E250 mm plenum.

Technical data
Panel sizes: 2495 x 600 mm (screw-on only); 1880 x 600 mm; 1265 x 600 mm
Slat cross-section: 40 x 40 mm
Slat spacing: 35 mm
Centre distance of slats: 75 mm
Rear counter-slats (black): 34 x 45 mm
Total thickness: 67 mm
Timber species: Pine, Oak
Area density: Pine 11.7 kg/m²; Oak 13.5 kg/m²
Openness: 47 %

Back panel
Rigid rockwool slabs (2.4 kg/m²) covered with black fleece (600 x 600 mm; thickness 20 or 22 mm). Not supplied by Laudescher.

Finish and reaction to fire
Fire-retardant treatment. Euroclass: B-s1, d0 or B-s2, d0 depending on timber species and surface finish.

Wood and finishes

• Wood: Pine or Oak
• Slat finish: clear varnish (recommended for sensitive environments)
• Wax-colour finishes available: White, Douglas, Oak, White oak, Cenza, Green, Wenge, Black
• Other colours available on request

Technical specifications

• Model: Linea Pix
• Product type: Solid wood acoustic ceiling panel (Linea 3D)
• Panel dimensions: 2495 x 600 mm (screw-on only); 1880 x 600 mm; 1265 x 600 mm
• Slat cross-section: 40 x 40 mm
• Slat spacing: 35 mm
• Centre distance of slats: 75 mm
• Rear counter-slats: 34 x 45 mm
• Total thickness: 67 mm
• Timber species: Pine, Oak
• Area density: 11.7 kg/m² (pine); 13.5 kg/m² (oak)
• Openness: 47 %
• Acoustic: Weighted index αw = 0.75; Absorption class C (ISO 354 / ISO 11654 conditions specified)
• Fire reaction: Euroclass B-s1, d0 or B-s2, d0 (depends on wood/finish)
• Back panel: Rigid rockwool slabs 600 x 600 mm, thickness 20 or 22 mm (2.4 kg/m²) covered with black fleece (not supplied)
• Installation: T24 grid or screwed to metal/wood frame (compliant with NF EN 13964 and DTU 58-1)
• Finishes: Clear varnish and multiple wax-colour options; other colours on request
