Oak acoustic baffle NEST

pinebeechDouglas fir

Short description

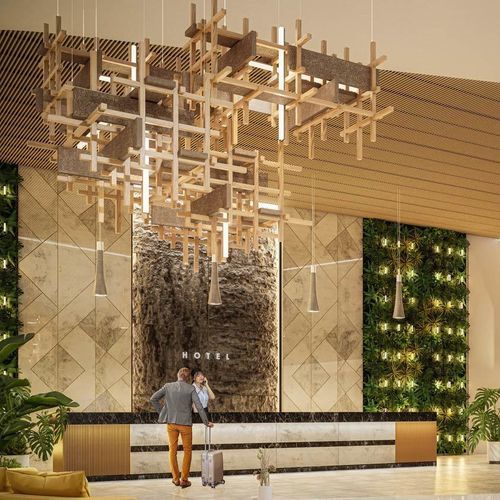

Suspended acoustic island in solid wood. Designed by Patrick Jouin for acoustic and architectural applications.

Acoustic complement

• Included
• Eco-sourced acoustic absorber made from algae (35 mm option)

Integration of lighting
Optional luminaires available.

• 2 ActiLine 3335 luminaires: lengths 1075 mm and 800 mm
• Power supply: 24V (DC)
• Copper cable with transparent sheath lengths 5 m and 6 m
• External power supply: 230V (AC) to 24V (DC) converter

Acoustic performance
The acoustic absorption values were measured in accordance with ISO 354 recommendations.
CANOPEA NEST + Algae 35 mm — Suspended 30 cm from substrate
Weighted absorption index: αw = 0.60 (MH)

Finish / Reaction to fire
Possibility of M1 fireproofing on request.

Fitting system
Kit of 4 hangers included (rope block + 2 m diameter 1 mm rope + 180° sphere top mount + screws).

Panel / Dimensions and physical data
Panel dimensions: 1446.30 mm and 1215 mm
Slat cross-section: 34 mm (face) x 34 mm (height)
Total thickness: 998 mm
Wood options: Pine, Oak, Beech
Weights: Pine 27.70 kg; Oak 29.2 kg; Beech 30 kg

Wood and finishes

• Wood species available: Beech, Pine, Oak
• Slat finish — Clear varnish
• Wax color finishes: White, Douglas, Oak, White oak, Cenza, Green, Wenge, Black
• Other colors available on request
• Clear varnish recommended for sensitive environments

Lighting kit image and acoustic images
Images show the lighting kit for Nest and the eco-sourced algae absorber as acoustic material.

Technical specifications

• Product name: Nest
• Type: Suspended acoustic island in solid wood
• Designer: Patrick Jouin
• Panel dimensions: 1446.30 mm and 1215 mm
• Slat cross-section: 34 mm x 34 mm
• Total thickness: 998 mm
• Wood options: Pine, Oak, Beech
• Weights: Pine 27.70 kg; Oak 29.2 kg; Beech 30 kg
• Acoustic absorber: Eco-sourced algae (35 mm option)
• Acoustic test standard: ISO 354
• Weighted absorption index: αw = 0.60 (MH) for CANOPEA NEST + Algae 35 mm suspended 30 cm from substrate
• Lighting (optional): 2 ActiLine 3335 luminaires (1075 mm & 800 mm), 24V DC supply; external 230V AC to 24V DC converter
• Fire reaction: Possibility of M1 fireproofing
• Fitting system: Kit of 4 hangers included
