Oak acoustic baffle LITTLE NEST

pinebeechDouglas fir

Short description

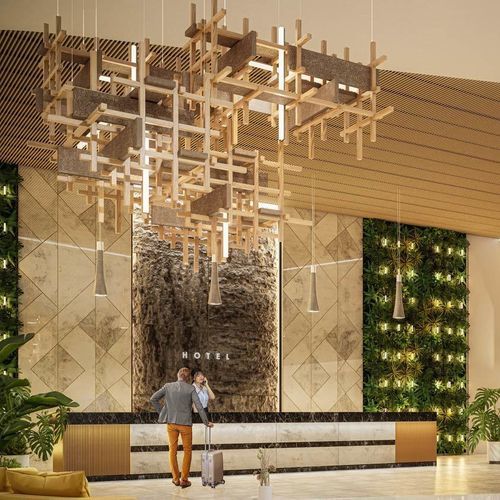

Suspended acoustic island in solid wood designed by Patrick Jouin iD. Available in Pine, Oak and Beech. Slatted panel construction with total thickness 298 mm and two panel sizes: 1450 mm and 1215 mm.

Acoustic complement

• Included
• Eco-sourced acoustic absorber made from algae, 35 mm (CANOPEA NEST option)

Integration of lighting
Optional lighting: 2 x ActiLine 3436 (lengths 1075 mm and 800 mm), 24 V DC supply; copper cable with transparent sheath (5 m and 6 m); external 230 V AC → 24 V DC power supply.

Acoustic performance
The acoustic absorption data were measured according to ISO 354. CANOPEA NEST + Algae 35 mm — suspended 30 cm from substrate. Weighted sound absorption index: αw = 0.60 (MH).

Finish / Reaction to fire
Possibility of M1 fireproofing. Clear varnish finish recommended for sensitive environments.

Fitting system
Kit of 4 hangers: rope block + 2 m Ø 1 mm rope + 180° sphere top mount + screws.

Wood and finishes

• Woods available: Pine, Oak, Beech
• Slat finishes: Clear varnish (varnished finish)
• Wax color finishes: White, Douglas, Oak, White oak, Cenza, Green, Wenge, Black
• Other colors available on request
• Clear varnish required for sensitive environments

Table — Dimensions, sections, weights
Panel dimensions: 1450 mm and 1215 mm. Slat cross-section: 34 mm (face) x 34 mm (height). Total thickness: 298 mm. Weights: Pine 17.30 kg; Oak 18.00 kg; Beech 18.40 kg.

Characteristics / technical specifications

• Product type: Suspended acoustic island in solid wood
• Designer: Patrick Jouin iD
• Acoustic absorber: Eco-sourced algae, 35 mm (when specified CANOPEA NEST)
• Acoustic testing: ISO 354 (weighted index αw = 0.60 MH)
• Panel dimensions: 1450 mm and 1215 mm
• Slat cross-section: 34 x 34 mm
• Total thickness: 298 mm
• Available woods: Pine, Oak, Beech
• Weights (by wood): Pine 17.30 kg; Oak 18.00 kg; Beech 18.40 kg
• Lighting (optional): 2 x ActiLine 3436 (1075 mm and 800 mm), 24 V DC; copper cable with transparent sheath (5 m and 6 m); external 230 V AC → 24 V DC power supply
• Fitting kit: 4 hangers (rope block + 2 m Ø 1 mm rope + 180° sphere top mount + screws)
• Reaction to fire: possibility of M1 fireproofing
• Finishes: clear varnish and multiple wax color finishes; other colors on request
