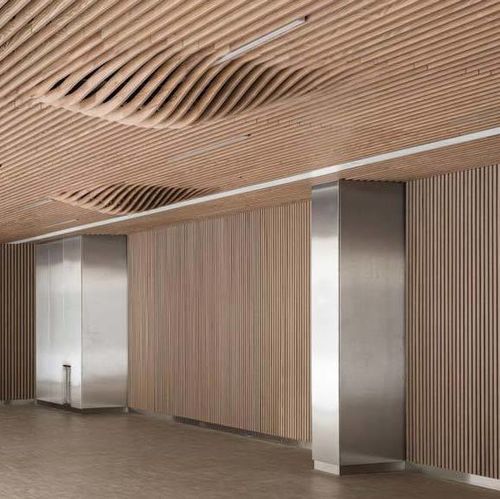

False ceiling acoustic panel LINEA SHAPE 2

solid woodoakpine

Short description
Solid wood slatted acoustic panel designed for suspended ceilings, delivered as three panels (1880 × 600 mm each) composing a 1880 x 1800 mm unit. To be installed on T24 grid systems.

Key characteristics

• Designed for T24 framework installation

Acoustic performance
Weighted absorption index: αw = 0.80
Absorption class: Class B
Acoustic data (αp, αw, absorption class) calculated according to ISO 11654 (Linea + acoustic complement + 20 mm rockwool on E250 mm plenum).

Technical data (table)
Panel dimensions: 1880 x 1800 mm (3 panels of 1880 × 600 mm each)
Slat cross-section: 20 mm (face) × 68 mm (height)
Slat spacing: 65.71 mm
Centre distance of slats: 85.71 mm
Black rear counter-slats: 34 × 45 mm
Total thickness: 343 mm
Timber species: slatted pine; slatted finger-jointed oak
Area density: 13.7 kg/m² (pine); 15.5 kg/m² (oak)
Openness percentage: 77%

Finish / Reaction to fire (to EN 13501-1)
Fire-retardant finishes available. Euroclass: B-s1, d0 or B-s2, d0 depending on timber species and finish.

Installation
Installation on T24 framework in accordance with NF EN 13964 and DTU 58-1.

Back panel
Rigid acoustic rockwool slabs (2.4 kg/m²) covered with black fleece (size: 600 x 600 mm; thickness: 20 or 22 mm). Not supplied by Laudescher.

Wood and finishes

• Wood species: Pine, Oak
• Slat finish: Clear varnish
• Wax-colour finishes: White, Douglas, Oak, White oak, Cenza, Green, Wenge, Black
• Other colours available on request
• Clear varnish recommended for sensitive environments

Technical specifications

• Panel dimensions: 1880 x 1800 mm (3 panels of 1880 × 600 mm each)
• Slat cross-section: 20 mm (face) × 68 mm (height)
• Slat spacing: 65.71 mm
• Centre distance of slats: 85.71 mm
• Black rear counter-slats: 34 × 45 mm
• Total thickness: 343 mm
• Timber species: slatted pine; slatted finger-jointed oak
• Area density: 13.7 kg/m² (pine); 15.5 kg/m² (oak)
• Openness percentage: 77%
• Acoustic: Weighted index αw = 0.80; Absorption class B
• Reaction to fire: Euroclass B-s1,d0 or B-s2,d0 depending on wood/finish
• Installation standard: NF EN 13964; DTU 58-1
• Back panel: rigid acoustic rockwool slabs (not supplied)
