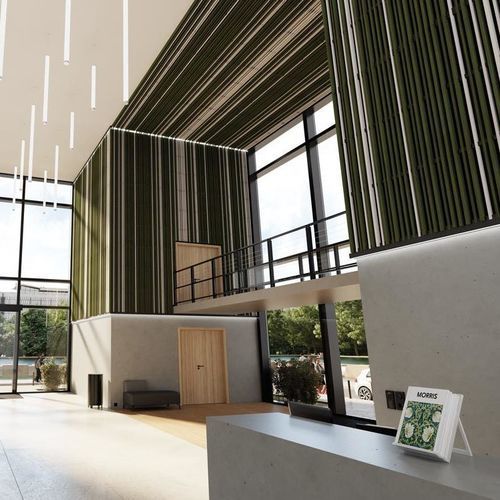

False ceiling acoustic panel LINEA TOUCH

solid woodpinerectangular

Short description
Slatted solid wood acoustic panel for suspended ceilings, configurable by slat thickness and finish options.

Overview
Linea Touch offers a modular slatted panel system allowing numerous combinations of slat sections, thicknesses and surface finishes. The online configurator visualises panel compositions to support specification and design decisions.

Configuration options

• 2 slat cross-sections (20×42 mm and 20×22 mm)
• Choice of 12 varnish or wax colour finishes

Versions / Mounting

• For installation on T24 grid
• For screwing onto metal or wooden frame (screw-on only for 2495×600 mm size)

Back panel
Rigid acoustic rockwool slabs (2.4 kg/m²) with black fleece covering (600×600 mm; 20 or 22 mm). Not supplied by Laudescher.

Acoustic performance
Weighted sound absorption index: αw = 0.80 (Absorption class B). Values (αp, αw, class) calculated per ISO 11654 with LR 20 mm complement on E50 mm plenum.

Finish / Reaction to fire (to EN 13501-1)
Euroclass B-s1,d0 or B-s2,d0 depending on finish.

Configurator & visualisation
Use the configurator to combine slat thicknesses and finishes and to visualise panel compositions for project specifications.

Panel dimensions and sections
Panel dimensions: 2495×600 mm (screw-on only); 1880×600 mm; 1265×600 mm

Slat cross-section: 20 mm (face) × 42 mm (height) and 20 mm (face) × 22 mm (height)

Slat spacing: 30 mm

Black rear counter-slats: 34×45 mm

Total thickness: 69 mm

Wood species: Pine

Area density, pine: 10.5 kg/m²

Openness percentage: 60%

Installation standards
Install on T24 grid or by screwing in accordance with NF EN 13964 and DTU 58-1.

Technical specifications

• Product type: Slatted solid wood acoustic panel for suspended ceilings
• Model / family: Linea Touch
• Panel dimensions: 2495×600 mm (screw-on only); 1880×600 mm; 1265×600 mm
• Slat cross-section: 20×42 mm and 20×22 mm
• Slat spacing: 30 mm
• Black rear counter-slats: 34×45 mm
• Total thickness: 69 mm
• Wood species: Pine
• Area density (pine): 10.5 kg/m²
• Openness percentage: 60%
• Acoustic performance: αw = 0.80 (Absorption class B), tested per ISO 11654 with LR 20 mm complement on E50 mm plenum
• Fire reaction (EN 13501-1): Euroclass B-s1,d0 or B-s2,d0 depending on finish
• Back panel: Rigid acoustic rockwool slabs 2.4 kg/m², black fleece (600×600 mm; 20 or 22 mm) — not supplied by Laudescher
• Mounting: T24 grid or screwed to metal/wooden frame
• Finishes: Clear varnish and multiple wax colour finishes (12 options)
